Shop MILLER ELECTRIC

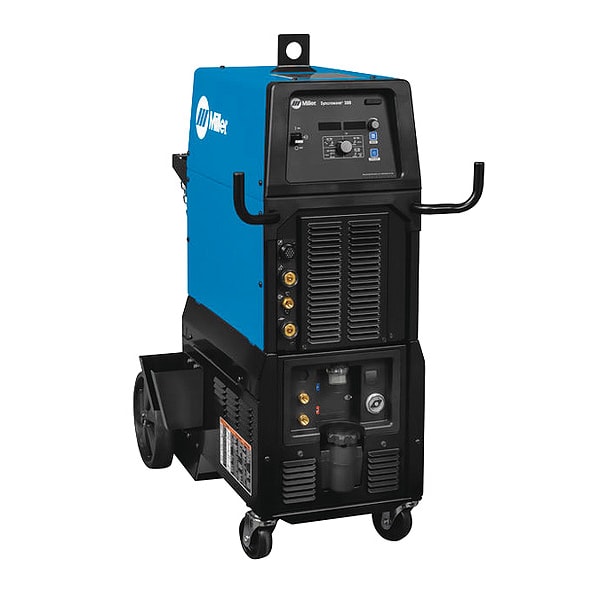

TIG Welder, Syncrowave 300 Series, 208V AC, 220/230/240V AC, 460/480V AC, 300 Max. Output Amps

  • Mfr # 907782

  • Zoro # G0193690

product price:
$
8,992.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.012 in to 1/2 in
Aluminum - Material Thickness
0.015 in to 3/8 in
Input Voltage
208/220/230/240/460/480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907782
Zoro #
G0193690
UPC #
715959676250
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.012 in to 1/2 in
Aluminum - Material Thickness
0.015 in to 3/8 in
Overall Depth
24.59 in
Overall Height
29.41 in
Overall Width
15 in
Power Cord Length
10 ft
For Minimum Material Thickness
0.012 in (Mild Steel), 0.015 in (Aluminum)
For Maximum Material Thickness
1/2 in (Mild Steel), 3/8 in (Aluminum)
For Aluminum Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
3/200 in
For Stainless Steel Thickness - Minimum
3/250 in
For Steel Thickness - Maximum
1/2 in
For Steel Thickness - Minimum
3/250 in
For Stainless Steel Thickness - Maximum
1/2 in

Details

Welder Industrial Class
Medium
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/220/230/240/460/480V AC
Rated Output
300A/22V @ 30% Duty Cycle, 210A/18V @ 60% Duty Cycle
Welder Max. Output Amps
300
Welder Min. Output Amps
5
Welder Duty Cycle
60 %
Series
Syncrowave 300
Standards
CSA, ISO
Features
Wireless Remote Compatible
Welded Material
Aluminum, Mild Steel, Stainless Steel
Application
Automotive, Light and Heavy Industrial Manufacturing, Maintenance and Repair, Pipe and Tube Fabrication, Precision Fabrication, Shipbuilding, Vocational
Input (Amps)
47/4.1
Power Source Weight
123 lb
Welder Input Hz
50/60
Includes
Power Source Only
Polarity
AC/DC
Phase
Single/Three
Welder Input Phase
1 or 3
Open Circuit Voltage
60V DC
Pulse Frequency
0.1 to 150 pulses/second
Welding Mode
CC
Input Frequency
50/60 Hz
Max. Input Current
27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase)
Weight
101 lb
Amperage Range
5 to 300 A
Stick Welding Maximum Output Current
300 A
TIG Welding Minimum Output Current
5 A
Plug Type
Bare Leads
Stick Welding Minimum Output Current
5 A
Remote Connection Type
14-Pin (Miller)
Remote Control
Remote Control Not Included
Stick Welding Output @ Duty Cycle
125 A @ 25 V, 100%, 160 A @ 26.4 V, 60%, 230 A @ 28.4 V, 30%
TIG Welding Output @ Duty Cycle
175 A @ 17 V,100%, 210 A @ 18.4 V, 60%, 300 A @ 22 V, 30%
Color
Blue
For Material Type
Aluminum, Stainless Steel, Steel
TIG Welding Maximum Output Current
300 A
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Model
907782
Amperage Stick - Minimum
5 A
Amperage Stick - Maximum
300 A
Rated Output @ Duty Cycle (Stick)
125 A @ 25 V, 100%, 160 A @ 26.4 V, 60%, 230 A @ 28.4 V, 30%
Welding Power Source Type
CC
Amperage TIG - Maximum
300 A
Maximum Input Current
27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase)
Amperage TIG - Minimum
5 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
175 A @ 17 V,100%, 210 A @ 18.4 V, 60%, 300 A @ 22 V, 30%

Description

TIG Welder, For Material Type Aluminum, Stainless Steel, Steel, For Maximum Material Thickness 1/2 in (Mild Steel), 3/8 in (Aluminum), For Minimum Material Thickness 0.012 in (Mild Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 27 A @ 208V (Three-Phase), 47 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Syncrowave 300, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 5 A
