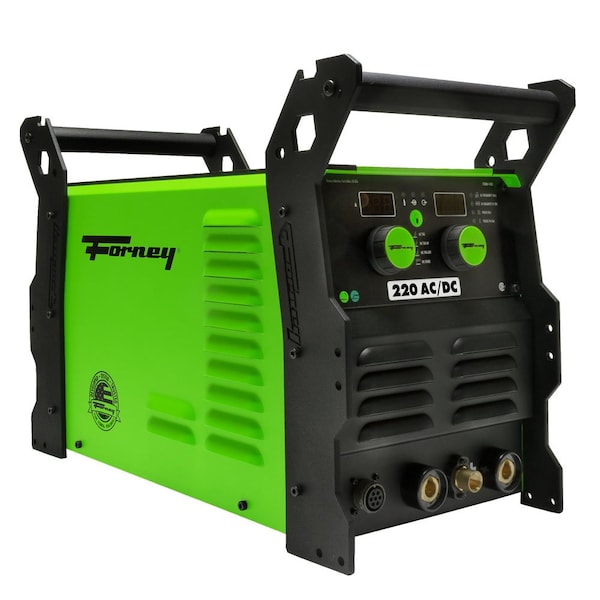

220 AC/DC TIG Welder Pkage

The Forney® 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/230V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!
Product Specifications:
Processes:
* SMAW (Stick)
* GTAW- DC (TIG)
* GTAW- AC (TIG)
Output Power:
TIG
* 120V: 25% @ 120 AMP (AC)
* 120V: 25% @ 130 AMP (DC)
* 230V: 35% @ 220 AMP
Stick
* 120V: 40% @ 85 AMP
* 230V: 35% @ 200 AMP
Input Power:
* 120V @ 24.8 AMP
* 230V@ 32 AMP
Welding Capacity:
* Up to 1/2 inch
Wire/Electrode Diameter:
* Stick: 1/16" (1.6 mm) to 5/32" (4.0 mm)
* TIG: .040" (1.02 mm) to 1/8" (3.2 mm)
Unit Weight of Welder Out of Display Box:
* 54 lbs. (24.54 kg)
Unit Dimensions of Welder Out of Display Box:
* H: 15.5" (393.7 mm)
* L: 23.25" (263.53 mm)
* W: 10.375" (590.55 mm)
For Use On:
* Solid Steel
* Cast Iron/Steel
* Stainless Steel
* Aluminum
Features:
* Stable Arc at 5 AMPs
* Pulse Welding
* High Frequency Starts
* Ability to Turn Off High Frequency
* TIG Torch/Foot Pedal Combination
* Dual-Voltage
* Digital Gauges
Included Accessories:
* 12.5' (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck
* 12.5' (3.81 m) 7 Pin Foot Pedal
* 15’ (4.57 m) Ground Clamp with Cable
* 15’ (4.57 m) Electrode Holder with Cable
* 15’ (4.57 m) Input Power Cable
* Flowmeter with Hose
Recommended Accessories and Consumables:
* ITEM# 85660 - 150 AMP 17F Amptrol TIG Torch 12.5'
