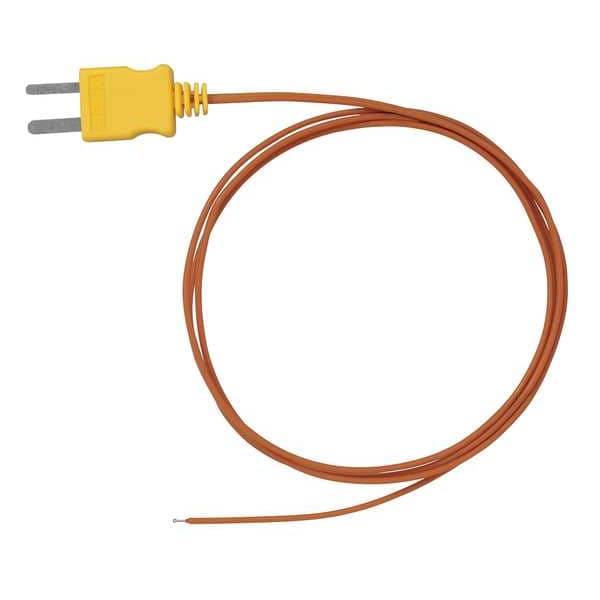

K-Type Thermocouple

  • Mfr # 49-77-2002

  • Zoro # G2736727


product price: $22.97
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 500 Degrees
Temp. Range (C)
-40 Degrees to 260 Degrees
Probe Length
0.19 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49-77-2002
Zoro #
G2736727
UPC #
045242195879
Country of Origin
China

Dimensions

Probe Length
0.19 in
Probe Wire Length
3 ft 3 in
Wire Length
3 ft. 3"
Manufacturers Warranty Length
2 yr
Cable Length
39 in
Probe Size
0.02 in x 3/16 in
Probe Tip Diameter
0.02 in
Manufacturer Warranty Length
2 yr
Probe Diameter
0.02 in

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 500 Degrees
Temp. Range (C)
-40 Degrees to 260 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Dual Banana Plug
Probe Contact Material
PTFE
Accuracy
+/-2.5 Degrees C
Use
HVAC/R
Probe Material
PTFE
Includes
(1) Thermocouple (K Type)
Temperature Measuring Element
K Thermocouple
For Application
Gas, Liquid, Semi-Solid, Solid
For Solids
Yes
Head Material
Welded Bead
Minimum Temperature F
-40 Degrees F
Probe Bend
Straight
Includes Thermowell
No
Cable Material
Insulated Jacket
Maximum Temperature F
500 Degrees F
For Gases
Yes
For Surfaces
Yes
Connector Type
Banana, Standard Plug
Tip Style
Rounded
Temperature Range
-40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C
Probe Sheath Material
Plastic
For Air
No
For Liquids and Gels
Yes
Thermocouple Type
Type K
Maximum Temperature C
260 Degrees C
Fitting Type
K-Type
Minimum Temperature C
-40 Degrees C
Junction Type
Ungrounded
Maximum Temperature °F
500 Degrees F
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °C
260 Degrees C
Minimum Temperature °F
-40 Degrees F
Minimum Temperature °F
-40 Degrees F
Maximum Temperature °C
260 Degrees C
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °F
500 Degrees F

Description

Immersion Temperature Probe, Type K, Ungrounded, For Application Gas, Liquid, Semi-Solid, Solid, Banana, Standard Plug, Probe Size 0.02 in x 3/16 in, Cable Length 39 in, -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C, Thermocouple
