Shop All Temperature Probes
Milwaukee Tool

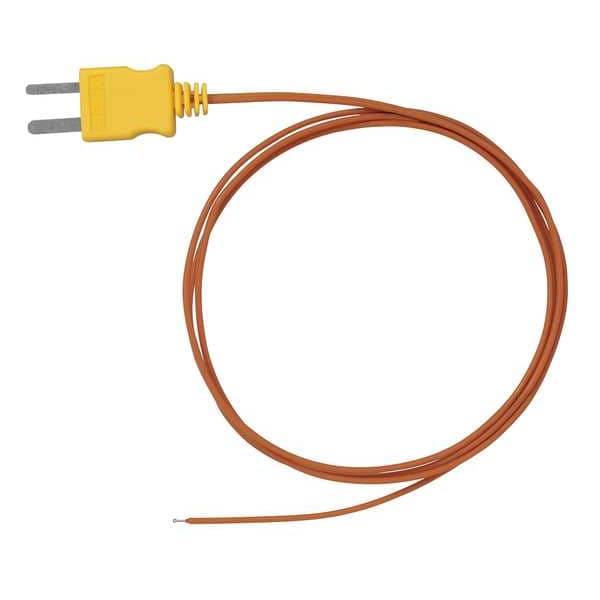

K-Type Thermocouple

product price: $18.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Primary Measuring Element Thermocouple
  • Probe Temp. Measuring Element K Thermocouple
  • Temp. Range (F) -40 Degrees to 500 Degrees
  • Probe Contact Material PTFE
See all product information

Product Information

Dimensions

Probe Wire Length 3 ft 3 in
Probe Length 0.19 in
Wire Length 3 ft. 3"
Manufacturers Warranty Length 2 yr
Cable Length 39 in
Probe Size 0.02 in x 3/16 in
Probe Tip Diameter 0.02 in
Manufacturer Warranty Length 2 yr
Probe Diameter 0.02 in

Details

Promotion Restriction Not eligible for promotion
Item Immersion Temperature Probe
Primary Measuring Element Thermocouple
Probe Temp. Measuring Element K Thermocouple
Temp. Range (F) -40 Degrees to 500 Degrees
Probe Contact Material PTFE
Probe Connection Type Dual Banana Plug
Includes (1) Thermocouple (K Type)
Probe Connector Mini
Temp. Range (C) -40 Degrees to 260 Degrees
Probe Material PTFE
Use HVAC/R
Accuracy +/-2.5 Degrees C
Temperature Measuring Element K Thermocouple
For Application Gas, Liquid, Semi-Solid, Solid
For Solids Yes
Head Material Welded Bead
Minimum Temperature F -40 Degrees F
Probe Bend Straight
Includes Thermowell No
Cable Material Insulated Jacket
Maximum Temperature F 500 Degrees F
For Gases Yes
Sensor Type Thermocouple
For Surfaces Yes
Connector Type Banana, Standard Plug
Tip Style Rounded
Temperature Range -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C
Probe Sheath Material Plastic
For Air No
For Liquids and Gels Yes
Thermocouple Type Type K
Maximum Temperature C 260 Degrees C
Fitting Type K-Type
Minimum Temperature C -40 Degrees C
Junction Type Ungrounded
Maximum Temperature °F 500 Degrees F
Minimum Temperature °C -40 Degrees C
Maximum Temperature °C 260 Degrees C
Minimum Temperature °F -40 Degrees F
Minimum Temperature °F -40 Degrees F
Maximum Temperature °C 260 Degrees C
Minimum Temperature °C -40 Degrees C
Maximum Temperature °F 500 Degrees F

Description

Immersion Temperature Probe, Type K, Ungrounded, For Application Gas, Liquid, Semi-Solid, Solid, Banana, Standard Plug, Probe Size 0.02 in x 3/16 in, Cable Length 39 in, -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C, Thermocouple
