Shop MILWAUKEE VALVE

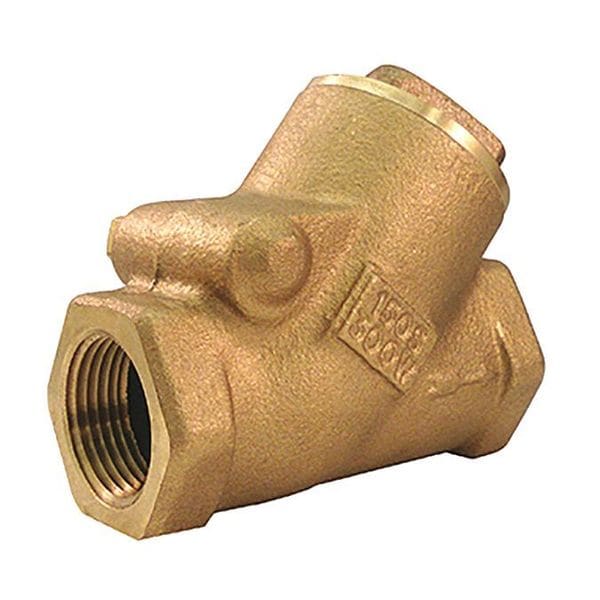

1-1/2" FNPT Bronze Swing Y Check Valve

  • Mfr # 515Y 1 1/2"

  • Zoro # G4208617

product price:
$
234.41
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2"
Connection Type
Threaded
Connection
FNPT
Body Material
Cast Bronze
Pipe or Tube Size - Check Valves
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
515Y 1 1/2"
Zoro #
G4208617
UPC #
697988642553
Country of Origin
United States

Dimensions

Pipe Size
1 1/2"
Pipe or Tube Size - Check Valves
1 1/2 in
Overall Height
4 in
Size
1 1/2"
Length
4 5/8 in
Width
1 3/4 in
Overall Length
4 in
Pipe or Tube Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Connection Size - Side 1
1 1/2 in
Nominal Valve Size
1 1/2 in
Height - Cap to Inlet Center
3 5/16 in
Wire Rope Length
4 in

Details

Connection Type
Threaded
Connection
FNPT
Body Material
Cast Bronze
Flow Design
Single
Material of Construction
Bronze
Sub-Category
Bronze
Item
Swing Y Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Water Pressure - Valves
300 psi @ 150 Degrees F
Mounting Position
Vertical or Horizontal
Body Material - Valves
Bronze
Cracking Pressure - Check Valves
0.5 psi
Seat Material
Bronze
Seat Material - Check Valves
Bronze
Max. Water Pressure
300 psi
Full Flow - Valves
Yes
Standards
ASTM B16, ASTM B505, ASTM B584, ASTM B62, MSS SP-80
Max. Temp.
425 Degrees F
Max. Temp. - Valves
425 Degrees F
Max. Pressure
150 psi SWP - 300 psi WOG
Mechanism and Body Design
Y Swing
Cracking Pressure
0.5 psi
Min. Temp. - Valves
-20 Degrees F
Cap to Inlet Center
3 3/8 in
Item - Check Valves
Check Valve
Flow - Valves
76.0 gpm
Max. Steam Pressure - Valves
150 psi WSP
Application - Valves
General Purpose
Connection Type - Check Valves
FNPT x FNPT
Seal Material - Check Valves
Bronze
Max. Steam Pressure
150 psi
Seal Material
Bronze
Flow
76 gpm
Mounting Orientation
Horizontal
Type
Y Pattern
Check Mechanism
Swing
Valve Body Style
Y-Style
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Maximum Pressure - Steam
150 psi
For Media
Gas, Oil, Steam, Water
Check Mechanism Material
Bronze
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 2
NPT
Coefficient of Volume (Cv)
56
Silent Check
Standard
3-A Standard Compliance
Not Rated
Includes Counterweight
No Counterweight
Connection Gender - Side 2
Female
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
300 psi
Operating Temperature - Maximum
425 Degrees F
Valve Series
515Y

Description

MILWAUKEE VALVE 515Y is a 1-1/2 in swing Y check valve with a bronze body and FNPT x FNPT threaded connections. Intended for one-way flow applications in general-purpose piping systems for gas, oil, steam, and water within stated product ratings. The Y-style body and swing mechanism has a full-flow design, with a 0.5 psi cracking pressure, 76 gpm flow rating, and Cv of 56.

Key Features:

  • Valve type: Swing Y check valve with Y-style body and swing check mechanism.
  • Size and connections: 1-1/2 in nominal valve size with female NPT connections on both ends.
  • Material: Cast bronze body with bronze check mechanism, seat, and seal materials.
  • Pressure ratings: 300 psi WOG, 150 psi SWP, and 300 psi at 150 degrees F maximum water pressure.
  • Temperature range: -20 degrees F to 425 degrees F.
  • Flow specifications: Full-flow design with 76 gpm flow rating and Cv of 56.
  • Installation orientation: Horizontal or vertical mounting.
  • Dimensions: 4-5/8 in length, 4 in overall height, and 1-3/4 in width.
  • Standards: Meets multiple ASTM and MSS standards.
