Shop MILWAUKEE VALVE

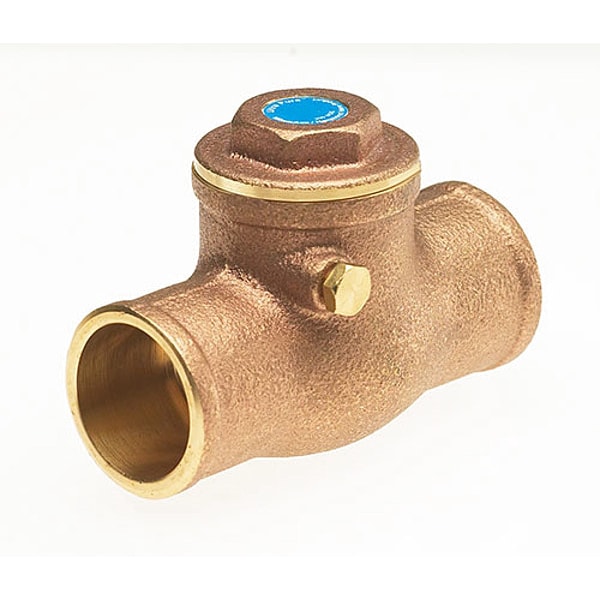

1" Solder Low Lead Brass Swing Check Valve

  • Mfr # UP0968000100
  • Zoro # G4215504
product price:
$
94.99
/ea

Key Features

Pipe Size
1"
Connection Type
Solder
Connection
Solder
Body Material
Brass
Item - Check Valves
Check Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UP0968000100
Zoro #
G4215504
UPC #
697988642980
Country of Origin
China

Dimensions

Pipe Size
1"
Size
1"
Width
1 1/2 in
Pipe or Tube Size - Check Valves
1 in
Length
3 29/32 in
Overall Height
2 19/32 in
Overall Length
3.46 in
Pipe or Tube Size
1 in
Nominal Valve Size
1 in
Height - Cap to Inlet Center
1 3/4 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Wire Rope Length
3.46 in

Details

Connection Type
Solder
Connection
Solder
Body Material
Brass
Item - Check Valves
Check Valve
Mounting Position
Multi Positional
Cracking Pressure
0.1 psi
Connection Type - Check Valves
Sweat x Sweat
Sub-Category
Brass
Cap to Inlet Center
1 25/32 in
Min. Temp. - Valves
-20 Degrees F
Full Flow - Valves
Yes
Standards
NSF/ANSI 372
Cracking Pressure - Check Valves
0.1 psi
Seal Material - Check Valves
Brass
Seat Material
Brass
Item
Swing Check Valve
Seat Material - Check Valves
Metal
Max. Water Pressure - Valves
200 psi @ 150 Degrees F
Max. Temp.
158 Degrees F
Mechanism and Body Design
Inline Swing
Flow - Valves
31.0 gpm
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Steam Pressure - Valves
Not Rated
Max. Pressure
200 psi WOG
Material of Construction
Low Lead Brass
Application - Valves
General Purpose
Flow Design
Single
Body Material - Valves
Brass
Max. Temp. - Valves
150 Degrees F
Flow
31 gpm
Seal Material
Brass
Mounting Orientation
Horizontal, Vertical
Type
Swing
Check Mechanism Material
Brass
Operating Temperature - Maximum
150 Degrees F
Includes Counterweight
No Counterweight
Connection Gender - Side 1
Female
Valve Body Style
Inline
For Media
Gas, Oil, Water
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
200 psi
Connection Type - Side 2
Sweat
NSF Certifications for Food and Drinking Water
NSF 61
Coefficient of Volume (Cv)
31
Silent Check
Standard
Check Mechanism
Swing
Connection Gender - Side 2
Female
Connection Type - Side 1
Sweat
3-A Standard Compliance
Not Rated
Valve Series
UP968

Description

MILWAUKEE VALVE UP0968000100 is a 1 in. swing check valve with an inline low lead brass body and solder/sweat x sweat female connections. It uses a hinged swing mechanism and is configured for one-direction flow and reverse-flow checking. This valve is for gas, oil, and water applications within specified pressure and temperature ratings. Cv 31; flow rate 31 gpm; cracking pressure 0.1 psi.

Key Features:

  • Valve type: Swing check valve with inline body style.
  • Material: Low lead brass construction with brass body, brass check mechanism, brass seal, and brass seat.
  • Connections: 1 in. female sweat connections on both sides; solder/sweat x sweat connection type.
  • Pressure rating: 200 psi WOG; maximum water pressure 200 psi at 150 degrees F.
  • Temperature range: -20 degrees F minimum operating temperature to 150 degrees F maximum operating temperature.
  • Flow capacity: Cv 31; flow rate 31 gpm.
  • Installation: Horizontal or vertical mounting; multi-positional mounting.
  • Standards: NSF 61, NSF/ANSI 372.
  • Dimensions: 3.46 in. overall length, 2 19/32 in. overall height, 1 1/2 in. width.
