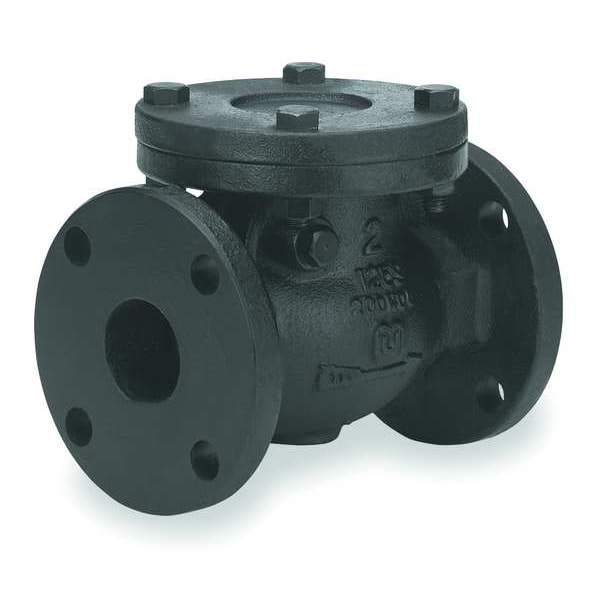

2" Flanged Cast Iron Swing Check Valve

Mfr # 2974-M 2
Zoro # G1386156

$283.05

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Pipe Size 2"
Connection Type Flanged
Connection Flanged
Body Material Cast iron
Material of Construction cast iron

See all product information

Brand Milwaukee Valve
MFR # 2974-M 2
Zoro # G1386156
UPC #
697988580442
Country of Origin China
Category Check Valves

Dimensions

Pipe Size	2"
Size	2"
Width	6"
Length	8 in
Pipe or Tube Size - Check Valves	2 in
Pipe or Tube Size	2 in

Details

Connection Type	Flanged
Connection	Flanged
Body Material	Cast iron
Material of Construction	cast iron
Seat Material - Check Valves	Bronze
Mounting Orientation - Check Valves	Horizontal, Vertical
Mechanism and Body Design	Inline Swing
Mounting Position	Vertical or Horizontal
Max. Steam Pressure	125 psi WSP
Sub-Category	Iron
Flow Design	Single
Max. Temp. - Valves	350 Degrees F
Max. Steam Pressure - Valves	125 psi WSP
Max. Temp.	350 Degrees F
Flow - Valves	137 gpm
Application - Valves	General Purpose
Item - Check Valves	Check Valve
Min. Temp. - Valves	-20 Degrees F
Full Flow - Valves	Yes
Max. Pressure	125 psi SWP - 200 psi WOG
Seal Material - Check Valves	Chrome, Cobalt
Cracking Pressure - Check Valves	0.750 to 1.000 psi
Max. Water Pressure	200 psi
Cap to Inlet Center	4 9/16 in
Body Material - Valves	Cast Iron
Standards	MSS-SP-71 and ASTM B16.1
Cracking Pressure	0.75 to 1 psi
Item	Swing Check Valve
Connection Type - Check Valves	Flange x Flange
Max. Water Pressure - Valves	200 psi @ 150 Degrees F
Seal Material	Chrome, Cobalt
Seat Material	Bronze
Mounting Orientation	Horizontal, Vertical

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Cast Iron, Pipe or Tube Size 2 in, Connection Type Flange x Flange, Cracking Pressure 0.750 to 1.000 psi, Mounting Orientation Horizontal, Vertical, Seal Material Chrome, Cobalt, Max. Temp. - Valves 350 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 200 psi @ 150 Degrees F, Max. Steam Pressure - Valves 125 psi WSP, Seat Material Bronze
