Shop MILWAUKEE VALVE

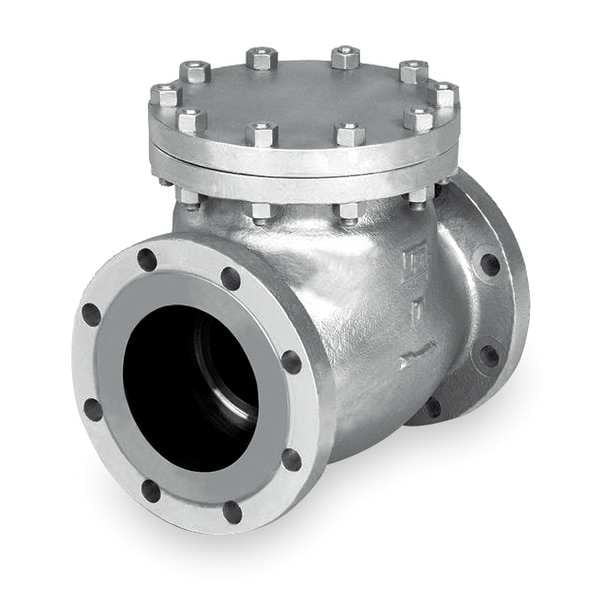

2" Flanged Cast Steel Swing Check Valve

  • Mfr # 1570 CB2 2"

  • Zoro # G2176937

product price:
$
459.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
Flanged
Connection
Flanged
Body Material
Cast Steel
Max. Water Pressure
285 psi @ 100 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1570 CB2 2"
Zoro #
G2176937
UPC #
697988619869
Country of Origin
China

Dimensions

Pipe Size
2"
Overall Height
6-9/64"
Width
5.98"
Size
2"
Pipe or Tube Size - Check Valves
2"
Length
8"
Overall Length
8 in
Pipe or Tube Size
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Height - Cap to Inlet Center
5 5/8 in
Wire Rope Length
8 in

Details

Connection Type
Flanged
Connection
Flanged
Body Material
Cast Steel
Max. Water Pressure
285 psi @ 100 Degrees F
Mechanism and Body Design
Inline Swing
Max. Water Pressure - Valves
285 psi @ 100 Degrees F
Sub-Category
Steel
Max. Temp. - Valves
1000 Degrees F
Cap to Inlet Center
6-9/64"
Max. Pressure
285 psi @ 100 Degrees F
Mounting Position
Horizontal
Item
Swing Check Valve
Seat Material - Check Valves
Chrome, Cobalt
Max. Steam Pressure - Valves
200 psi WSP
Standards
API 8 Trim (Cr-13 Stem/Disc Face HF CoCr Seat Face), ASTM A216-WCB
Max. Temp.
1000 Degrees F @ 20 psi
Application - Valves
General Purpose
Flow Design
Single
Connection Type - Check Valves
Flange x Flange
Min. Temp. - Valves
-20 Degrees F
Mounting Orientation - Check Valves
Horizontal
Cracking Pressure
2 psi
Item - Check Valves
Check Valve
Body Material - Valves
Cast Steel
Flow - Valves
137 gpm
Seal Material - Check Valves
Chrome, Cobalt
Material of Construction
Cast Steel
Seat Material
Cobalt Chrome Alloy
Full Flow - Valves
Yes
Cracking Pressure - Check Valves
2.000 psi
Flow
137 gpm
Seal Material
Cobalt Chrome Alloy
Mounting Orientation
Horizontal
Type
Horizontal
Coefficient of Volume (Cv)
156
Connection Type - Side 2
Flange
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
285 psi
Valve Body Style
Inline
3-A Standard Compliance
Not Rated
Check Mechanism Material
Steel
Maximum Pressure - Steam
200 psi
Operating Temperature - Maximum
1,000 Degrees F
Silent Check
Standard
Check Mechanism
Swing
ANSI Flange Class
Class 150
For Media
Steam, Water
Connection Type - Side 1
Flange
Includes Counterweight
No Counterweight
Operating Temperature - Minimum
-20 Degrees F
Valve Series
1570CB2

Description

The MILWAUKEE VALVE 1570 CB2 is a 2 in flanged cast steel swing check valve with an inline body design. It features a hinged swing check mechanism for one-direction flow applications. Rated for steam and water service, it is for horizontal mounting in piping systems.

Key Features:

  • 2 in nominal valve size with flange x flange connections
  • Cast steel body with steel check mechanism
  • Swing check design with inline body style and single flow design
  • ANSI flange class: Class 150
  • Media: steam, water
  • Cracking pressure: 2 psi
  • Flow capacity: 137 gpm; Cv: 156
  • Full flow: yes
  • Maximum water pressure: 285 psi at 100 degrees F
  • Maximum steam pressure: 200 psi WSP
  • Operating temperature range: -20 degrees F to 1,000 degrees F
  • Seat and seal material: cobalt chrome alloy
  • Overall length: 8 in; overall height: 6-9/64 in; width: 5.98 in
  • Standards: API 8 Trim (Cr-13 Stem/Disc Face HF CoCr Seat Face), ASTM A216-WCB
