  11. Silent Combo Swing Check Valve 1-1/2"

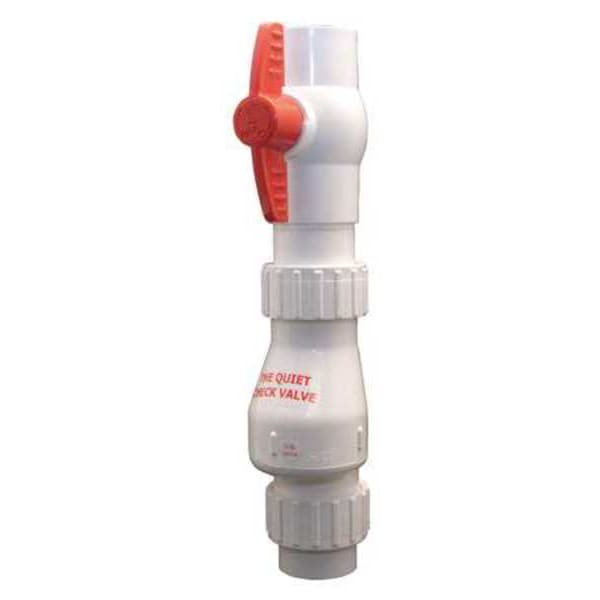

Zoeller Silent Combo Swing Check Valve 1-1/2" 30-0046 - main

Silent Combo Swing Check Valve 1-1/2"

  • Mfr # 30-0046

  • Zoro # G3654673

product price: $54.49
/ea

Key Features

Pipe Size
1 1/2"
Connection Type
Solvent Weld
Connection
Solvent
Body Material
PVC
Seat Material
PVC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-0046
Zoro #
G3654673
UPC #
053514308353
Country of Origin
United States

Dimensions

Pipe Size
1 1/2"
Pipe or Tube Size - Check Valves
1 1/2 in
Length
15 2/5 in
Width
3 1/2 in
Overall Height
4 1/2 in
Size
1 1/2"
Overall Length
14.75 in
Pipe or Tube Size
1 1/2 in
Height - Cap to Inlet Center
2 3/4 in
Connection Size - Side 2
1 1/2 in
Connection Size - Side 1
1 1/2 in
Nominal Valve Size
1 1/2 in

Details

Connection Type
Solvent Weld
Connection
Solvent
Body Material
PVC
Seat Material
PVC
Flow
Full Flow
Item - Check Valves
Check Valve
Mounting Position
Vertical or Horizontal
Max. Temp.
130 Degrees F
Cap to Inlet Center
2 3/4 in
Spring Material - Check Valves
Stainless Steel
Material of Construction
PVC
Max. Pressure
50 psi
Seal Material
Buna N
Full Flow - Valves
Yes
Max. Water Pressure - Valves
50 psi @ 130 Degrees F
Seat Material - Check Valves
PVC
Max. Temp. - Valves
130 Degrees F
Mechanism and Body Design
Inline Swing
Spring Material
Steel
Connection Type - Check Valves
Solvent Weld x Solvent Weld
Mounting Orientation - Check Valves
Horizontal, Vertical
Seal Material - Check Valves
Rubber
Max. Steam Pressure - Valves
Not Rated
Sub-Category
PVC
Application - Valves
Pumps
Item
Swing Check Valve
Body Material - Valves
PVC
Flow Design
Single
Cracking Pressure
1 psi
Mounting Orientation
Horizontal, Vertical
Seal
Buna N
Maximum Pressure - Operating
50 psi
Operating Temperature - Maximum
130 Degrees F
Valve Body Style
Inline
Silent Check
Silent
Connection Type - Side 1
Socket
Check Mechanism Material
PVC
3-A Standard Compliance
Not Rated
NSF Certifications for Food and Drinking Water
Not Rated
Coefficient of Volume (Cv)
Not Rated
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 1
Female
Vacuum Service Rating
Not Rated
Connection Gender - Side 2
Female
Connection Type - Side 2
Socket
Check Mechanism
Swing
Includes Counterweight
Counterweight Included
Operating Temperature - Minimum
75 Degrees F
For Media
Water
Type
Check and Ball Combination

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves PVC, Pipe or Tube Size 1 1/2 in, Connection Type Solvent Weld x Solvent Weld, Mounting Orientation Horizontal, Vertical, Seal Material Rubber, Max. Temp. - Valves 130 Degrees F, Max. Water Pressure - Valves 50 psi @ 130 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material PVC, Spring Material Stainless Steel, Full Flow - Valves Yes, Application - Valves Pumps
