Shop MILWAUKEE VALVE

2" Threaded Low Lead Brass Swing Check Valve

  • Mfr # UP0967000200
  • Zoro # G4134243
product price:
$
255.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
Threaded
Connection
Threaded
Body Material
Brass
Max. Pressure
200 psi WOG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
UP0967000200
Zoro #
G4134243
UPC #
697988642959
Country of Origin
China
Connection Type
Threaded
Connection
Threaded
Body Material
Brass
Max. Pressure
200 psi WOG
Seat Material - Check Valves
Metal
Standards
NSF/ANSI 372
Full Flow - Valves
Yes
Connection Type - Check Valves
FNPT x FNPT
Mounting Orientation - Check Valves
Horizontal, Vertical
Body Material - Valves
Brass
Application - Valves
General Purpose
Flow Design
Single
Material of Construction
Low Lead Brass
Mounting Position
Multi Positional
Seat Material
Brass
Flow - Valves
131 gpm
Max. Steam Pressure - Valves
Not Rated
Sub-Category
Brass
Min. Temp. - Valves
-20 Degrees F
Item - Check Valves
Check Valve
Cracking Pressure - Check Valves
0.100 psi
Max. Water Pressure - Valves
200 psi @ 150 Degrees F
Cap to Inlet Center
2 11/16 in
Max. Temp. - Valves
150 Degrees F
Max. Temp.
155 Degrees F
Seal Material - Check Valves
Brass
Cracking Pressure
0.1 psi
Item
Swing Check Valve
Mechanism and Body Design
Inline Swing
Seal Material
Brass
Flow
131 gpm
Mounting Orientation
Horizontal, Vertical
Type
Swing
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
131
Check Mechanism
Swing
NSF Certifications for Food and Drinking Water
NSF 61
Check Mechanism Material
Brass
Maximum Pressure - Operating
200 psi
Includes Counterweight
No Counterweight
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Operating Temperature - Maximum
150 Degrees F
For Media
Gas, Oil, Water
Silent Check
Standard
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Vacuum Service Rating
Not Rated
Valve Series
UP967

Description

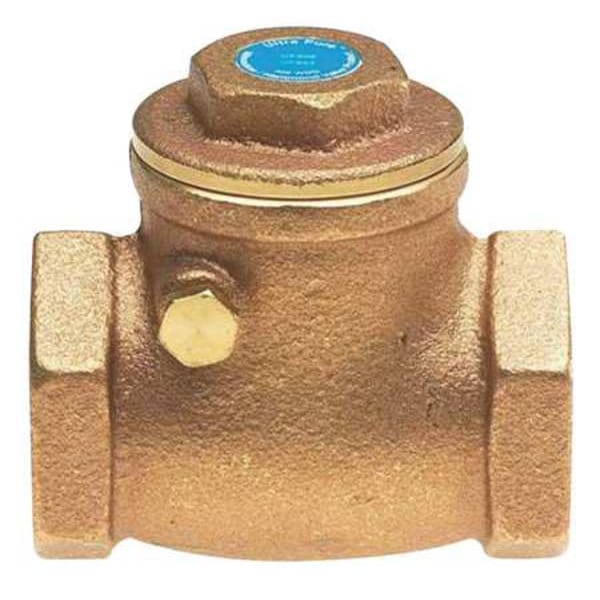

The MILWAUKEE VALVE UP0967000200 is a 2 in. threaded swing check valve with an inline brass body and low-lead brass construction. It uses a hinged swing mechanism for one-direction flow control in compatible gas, oil, and water piping systems. This valve features female NPT connections on both ends, a full-flow design, and mounting orientation: horizontal or vertical.

Key Features:

  • 2 in. nominal valve size with FNPT x FNPT threaded connections
  • Low-lead brass construction with brass body, brass check mechanism, brass seat, and brass seal
  • Swing check mechanism with inline body style and single-flow design
  • Cracking pressure: 0.1 psi
  • Flow rate: 131 gpm; Cv: 131
  • Maximum pressure: 200 psi WOG; maximum water pressure: 200 psi at 150 degrees F
  • Operating temperature range: -20 degrees F to 150 degrees F
  • Mounting orientation: horizontal or vertical; mounting position: multi positional
  • NSF 61
  • Standards: NSF/ANSI 372
  • Overall length: 3.7 in.; overall height: 3-27/32 in.
