Shop MILWAUKEE VALVE

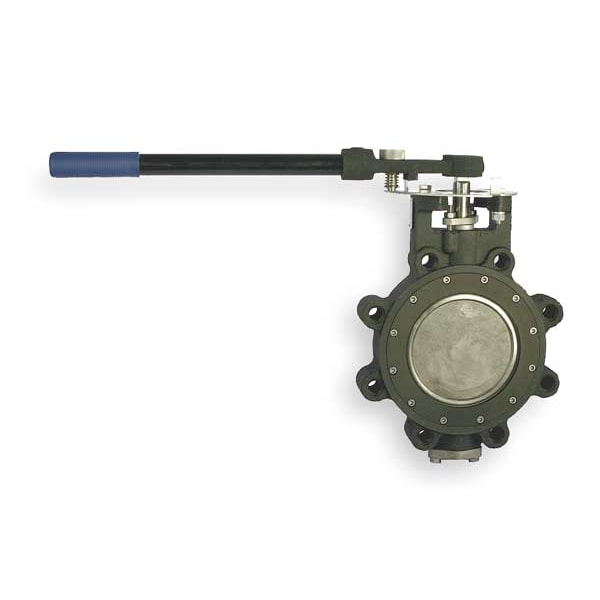

Butterfly Valve, Lug, 5 In, RPTFE Liner

  • Mfr # HP1LCS4212 5"

  • Zoro # G1907324

product price:
$
2,365.99
/ea
Free Shipping & Returns

Key Features

Style
Lug
Body Material
Carbon Steel
Pipe Size
5 in
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HP1LCS4212 5"
Zoro #
G1907324
UPC #
697988606432
Country of Origin
China
Item
Butterfly Valve
Style
Lug
Body Material
Carbon Steel
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
Handle Type
Lever
Number of Bolt Holes
8
Standards
API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
Liner Material
RPFTE
Disc Material
CF8M Stainless Steel
Temp. Range
-20 to 400 Degrees F
Seal Material
Graphite
Manufacturer Warranty
1 yr
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
400 Degrees F
Includes Disc Position Indicator
Disc Position Indicator Included
Stem Material
17-4PH Stainless Steel
Connection Type
Lug
Coefficient of Volume (Cv)
726
ANSI Flange Class
Class 150
Maximum Pressure - Operating
285 psi
Number of Flange Bolt Holes
8
Disc Alignment
Double-Offset
Maximum Pressure - Steam
150 psi
Handle - Locking
Locking
Number of Stop Positions
10
For Media
Steam
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Valve Series
HP

Description

Butterfly Valve, Lug Style, Body Material Carbon Steel, Max. Water Pressure 285 psi, Max. Steam Pressure 150 psi, Pipe Size 5 in, Temp. Range -20 to 400 Degrees F, Liner Material RPFTE, Disc Material CF8M Stainless Steel, Handle Type Lever, Number of Bolt Holes 8, Bolt Circle Dia. 8 1/2 in, Lug Dia. 3/4-10, Standards API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
