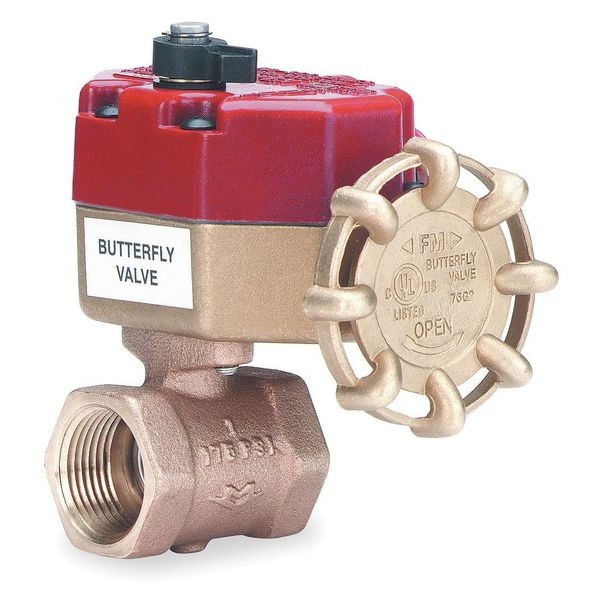

Control Valve, Fire Sprinkler, 2 In NPT
Mfr # BB-SCS02 2
Zoro # G1728571
product price: $638.99
/ea
Free Shipping & Returns
Key Features
Body Material
Bronze
Pipe Size
2 in
Max. Water Pressure
175 psi
Handle Type
Gear Operated Handwheel
Standards
cULus, FM, NYC BSA Approved, UL/FM
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BB-SCS02 2
Zoro #
G1728571
UPC #
697988581623
Country of Origin
United States
Dimensions
Pipe Size
2 in
Nominal Valve Size
2 in
Details
Item
Butterfly Disc Valve
Body Material
Bronze
Max. Water Pressure
175 psi
Handle Type
Gear Operated Handwheel
Standards
cULus, FM, NYC BSA Approved, UL/FM
Temp. Range
-30 to 250 Degrees F
Liner Material
FKM
Disc Material
304 Stainless Steel
Seal Material
EPDM
Operating Temperature - Maximum
250 Degrees F
Connection Type
NPT
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
175 psi
Operating Temperature - Minimum
-30 Degrees F
Includes Disc Position Indicator
Disc Position Indicator Included
Manufacturer Warranty
1 yr
For Media
Water
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
Not Rated
Valve Series
Butterball Slo-Close
Description
Butterfly Disc Valve, Body Material Bronze, Max. Water Pressure 175 psi, Pipe Size 2 in, Temp. Range -30 to 250 Degrees F, Liner Material FKM, Disc Material 304 Stainless Steel, Handle Type Gear Operated Handwheel, Standards cULus, FM, NYC BSA Approved, UL/FM
