  9. 0.084 Series Mlx Header 9Ckt With Peg

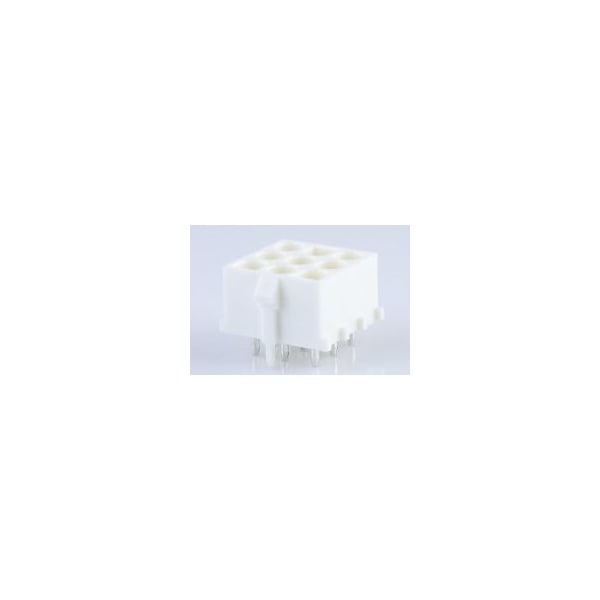

Molex 0.084 Series Mlx Header 9Ckt With Peg 432550147 - main

0.084 Series Mlx Header 9Ckt With Peg

  • Mfr # 432550147

  • Zoro # G305979275

product price: $1.39
/ea
Sold in multiples of 1040 for $1,445.60

Key Features

Number of Rows
3
Standards
CSA Certified; UL E29179
Material
Nylon
Application
Board-to-Board, Power, Wire-to-Board
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
432550147
Zoro #
G305979275
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.30mm

Details

Number of Rows
3
Standards
CSA Certified; UL E29179
Material
Nylon
Application
Board-to-Board, Power, Wire-to-Board
Color
Natural
Contact Finish
Tin Plated
Flammability Rating
UL 94V-2
Terminal Type
Through Hole
Hole Center to Center
6.35 mm
Current Rating
20 A; 9 A
Number of Contacts
9
Terminal Finish
Tin Plated
Max. Voltage
600V
Max. Temp.
105°C
Material - Metal
Phosphor Bronze
Circuits (Loaded)
9
Polarized to PCB
Yes
Keying to Mating Part
Yes
Component Type
PCB Header
Current - Maximum per Contact
20.0A, 9.0A
Product Name
MLX
CSA
LR19980
Material - Plating Mating
Tin
Glow-Wire Capable
No
Stackable
No
Shrouded
Fully
Temperature Range - Operating
-55° to +105°C
PCB Locator
Yes
Pitch - Mating Interface
6.35mm
Lock to Mating Part
Yes
Durability (mating cycles max)
50
Polarized to Mating Part
Yes
Flammability
94V-2
First Mate / Last Break
No
Orientation
Vertical
UL
E29179
PCB Retention
Yes
Series
43255
Material - Plating Termination
Tin
Breakaway
No
Material - Resin
Nylon
