  11. .110X.020 Female Qd Insulkrimp (Aa-2131)

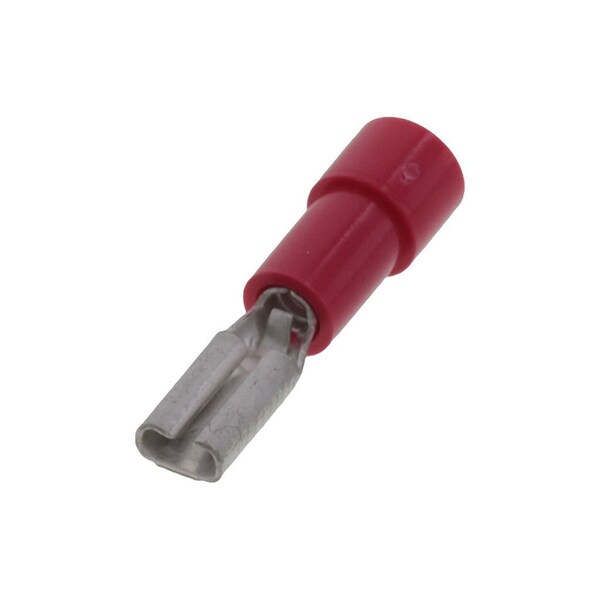

Molex .110X.020 Female Qd Insulkrimp (Aa-2131) 190170001 - main

.110X.020 Female Qd Insulkrimp (Aa-2131)

  • Mfr # 190170001

  • Zoro # G405899565

product price: $0.15
/ea
Sold in multiples of 550 for $82.50

Key Features

Insulation Color
Red
Insulation Type
PVC
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190170001
Zoro #
G405899565
UPC #
-
Country of Origin
United States

Dimensions

Tab Thickness
0.51mm
Tab Width
2.79mm
Wire Size (AWG)
18, 20, 22

Details

Insulation Color
Red
Insulation Type
PVC
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Connection Material
Brass
Standards
CSA Listed; UL E79133
Insulation Dia
3.40mm max.
Termination Interface Style
Crimp or Compression
Orientation
Straight
Material - Plating Termination
Tin
Gender
Female
Flammability
94V-0
Material - Plating Mating
Tin
Glow-Wire Capable
No
Type
Quick Disconnect
Temperature Range - Operating
-50° to +105°C
Polarized to Mating Part
No
Insulated
Partial
Product Name
InsulKrimp
Lock to Mating Part
None
Series
19017
Plating min - Mating
4.064µm
CSA
LR18689
UL
E79133
