  11. Female Disconnect, right angle, nylon fu

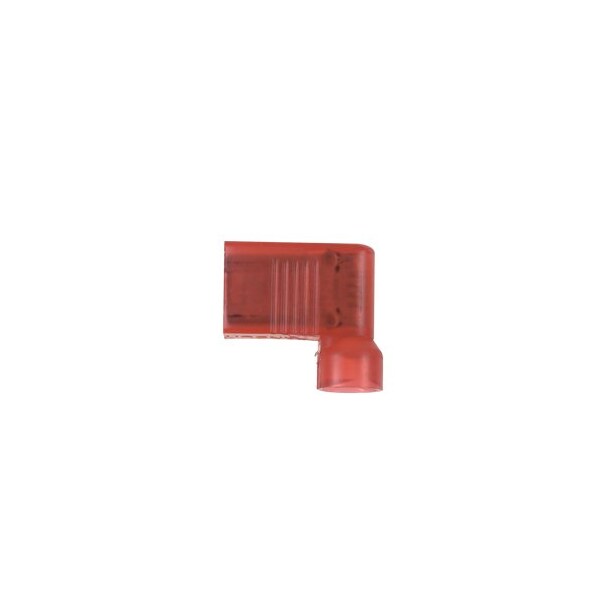

Panduit Female Disconnect, right angle, nylon fu DNFR18-206FIB-M - main

Female Disconnect, right angle, nylon fu

  • Mfr # DNFR18-206FIB-M

  • Zoro # G2855930

product price: $548.99
/pk 1000, $0.55/ea
Free Shipping & Returns

Key Features

For Use With
CT-300-1
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.58 in
Features
Right-angled Connector, Flame Retardant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNFR18-206FIB-M
Zoro #
G2855930
UPC #
7498382611
Country of Origin
Mexico

Dimensions

Overall Length
0.58 in
Width
0.4"
Height
0.6 in
Maximum Wire Insulation Diameter (In.)
0.17
Maximum Wire Size (AWG)
#18
Overall Height (mm)
15.2
Maximum Wire Insulation Diameter (mm)
4.5
Overall Depth (In.)
0.6
Minimum Copper Conductor Size (AWG)
#22
Wire Strip Length (In.)
11933
Tab Size (In.)
0.205/0.187 x 0.020
Minimum Metric Conductor Size (mm²)
0.5
Maximum Metric Conductor Size (mm²)
1
Overall Width (In.)
0.6
Overall Length (mm)
14.7
Tab Size (mm)
5.2/4.8 x 0.5
Overall Width (mm)
15.2
Maximum Copper Conductor Size (AWG)
#18
Minimum Wire Size (AWG)
#22
Overall Height (In.)
0.6
Insulation Diameter (mm)
4.6
Overall Depth (mm)
15.2
Overall Length (In.)
0.58
Wire Strip Length (mm)
7.1
Insulation Diameter (In.)
0.18
Depth
0.6 in

Details

For Use With
CT-300-1
Color Code
Red
Insulation Type
Fully Insulated
Features
Right-angled Connector, Flame Retardant
Finish
Tinned
Maximum Operating Temperature (°F)
221
Disconnect Type
Female Disconnect-Right Angle
Tongue Angle
Right Angle
Insulation Material
Nylon
Maximum Voltage (V)
600
Maximum Operating Temperature (°C)
105
Barrel Type
Funnel
Finish/Coating
Tin-Plated
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Flammability Rating
UL94-HB
Seam Type
Butted
Base Material
Brass
Maximum Voltage (kV)
0.6
Product Type
Disconnect
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Material
Brass
Contact Plating
Tin
Product Color
Red
Max Operating Temperature
105 degrees celsius
Product Class
Wire Termination

Description

Female Disconnect, right angle, nylon fully insulated, 22 - 18 AWG, .187/.205 x .020 tab size, funnel entry
