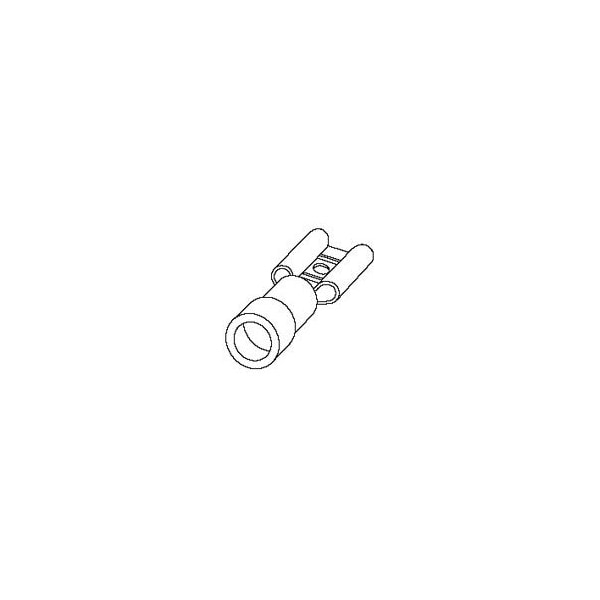

Molex .110X.032 Fem.Qd Insulkrimp (Bb-2135) 190170028 - main

.110X.032 Fem.Qd Insulkrimp (Bb-2135)

  • Mfr # 190170028

  • Zoro # G105899834

product price: $0.20
/ea
Sold in multiples of 4000 for $800.00

Key Features

Insulation
PVC
Insulation Color
Blue
Insulation Type
Partial Insulated, PVC
Connection Type
Female
Wire Range
16 to 14 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190170028
Zoro #
G105899834
UPC #
800753036093
Country of Origin
United States

Dimensions

Tab Thickness
0.81mm
Tab Width
2.79mm
Wire Size (AWG)
14, 16

Details

Item
Standard Quick-Disconnect Terminals
Insulation
PVC
Insulation Color
Blue
Insulation Type
Partial Insulated, PVC
Connection Type
Female
Wire Range
16 to 14 AWG
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Terminal Type
Quick Disconnect
Connection Material
Brass
Standards
CSA Listed; UL E79133
Insulation Dia
3.70mm max.
UL
E79133
Product Name
InsulKrimp
Series
19017
Flammability
94V-0
Material - Plating Termination
Tin
Glow-Wire Capable
No
CSA
LR18689
Orientation
Straight
Insulated
Partial
Polarized to Mating Part
No
Temperature Range - Operating
-50° to +105°C
Lock to Mating Part
None
Material - Plating Mating
Tin
