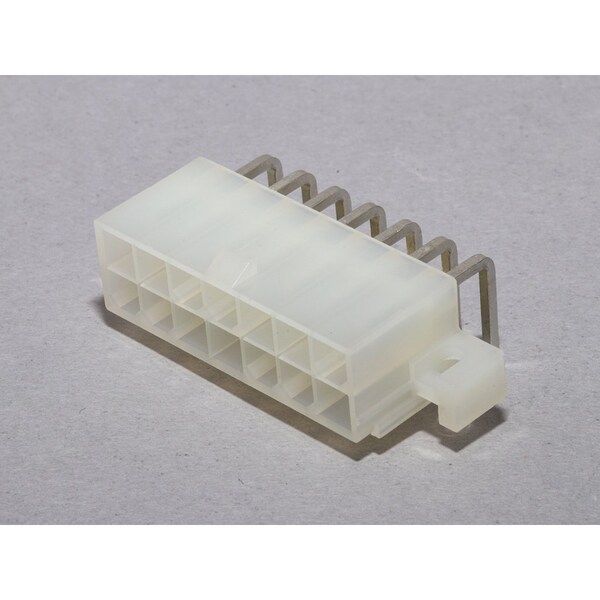

14CKT R/A MINI FIT HEADER 556914A1

  • Mfr # 39-29-1148

  • Zoro # G900415840

product price:
$
2.49
/ea
Sold in multiples of 45 for $112.05

Key Features

Material - Plating Termination
Matte Tin
Pitch - Mating Interface
4.20mm
Material - Resin
Nylon
Flammability
94V-2
Material - Plating Mating
Matte Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
39-29-1148
Zoro #
G900415840
UPC #
-
Country of Origin
Mexico
Material - Plating Termination
Matte Tin
Pitch - Mating Interface
4.20mm
Material - Resin
Nylon
Flammability
94V-2
Material - Plating Mating
Matte Tin
Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
Current - Maximum per Contact
13.0A
CSA
LR19980
Duration at Max. Process Temperature (seconds)
5
Material - Metal
Brass
Pitch - Termination Interface
4.20mm
Color - Resin
Natural
Durability (mating cycles max)
30
UL
E29179
Number of Rows
2
Lock to Mating Part
Yes
Voltage - Maximum
600V
PCB Locator
Yes
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
14
Plating min - Mating
2.540µm
Max. Cycles at Max. Process Temperature
1
Process Temperature max. C
260
Shrouded
Fully
Orientation
Right Angle
Plating min - Termination
2.540µm
Polarized to PCB
Yes
Circuits (maximum)
14
PCB Retention
Yes
