  11. 2.0 W/B Dual Grid Plug HsgAssy12Ckt

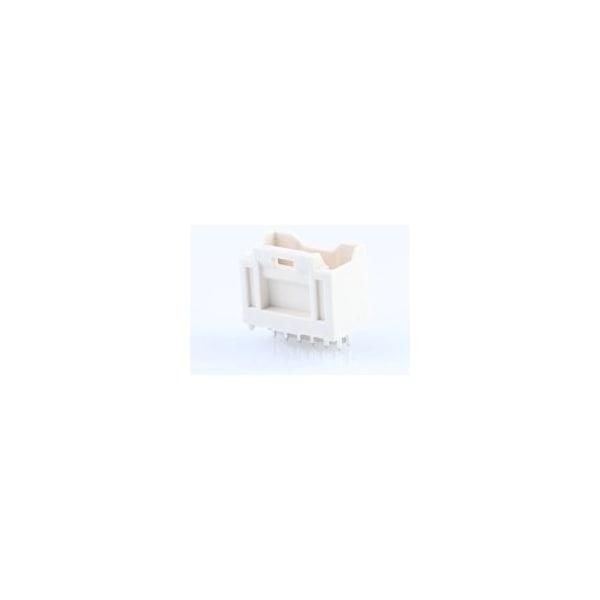

Molex 2.0 W/B Dual Grid Plug HsgAssy12Ckt 501645-1220 - main

2.0 W/B Dual Grid Plug HsgAssy12Ckt

  • Mfr # 501645-1220

  • Zoro # G4046162

original price: $0.99
7% off
new price: $0.92
/ea
Sold in multiples of 150 for $138.00

Key Features

PCB Thickness - Recommended
1.20mm, 1.60mm
Color - Resin
Natural
Orientation
Vertical
PCB Locator
Yes
CSA
LR19980
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
501645-1220
Zoro #
G4046162
UPC #
-
Country of Origin
Viet Nam

Dimensions

PCB Thickness - Recommended
1.20mm, 1.60mm
PC Tail Length
3.20mm

Details

Color - Resin
Natural
Orientation
Vertical
PCB Locator
Yes
CSA
LR19980
Pitch - Mating Interface
2.00mm
Lock to Mating Part
Yes
Termination Interface: Style
Through Hole
Voltage - Maximum
250V AC (RMS)/DC
Circuits (maximum)
12
Material - Plating Mating
Tin
Circuits (Loaded)
12
Durability (mating cycles max)
30
Material - Metal
Brass
Current - Maximum per Contact
2.0A
Flammability
94V-0
Material - Resin
Nylon
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
UL
E29179
Polarized to Mating Part
Yes
Number of Rows
2
Polarized to PCB
Yes
Keying to Mating Part
Yes
