  11. 2mm Mgrid Rec /Cap/Pegs T&R .38AuLF 8Ckt

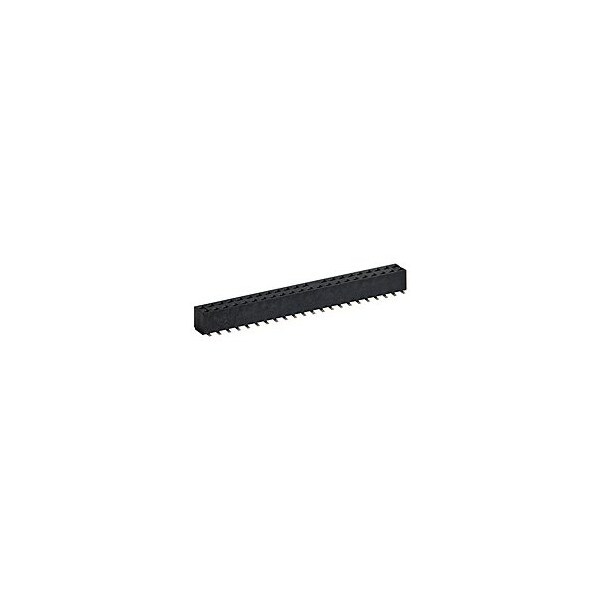

Molex 2mm Mgrid Rec /Cap/Pegs T&R .38AuLF 8Ckt 87381-9016 - main

2mm Mgrid Rec /Cap/Pegs T&R .38AuLF 8Ckt

  • Mfr # 87381-9016

  • Zoro # G2754041

original price: $1.35
7% off
new price: $1.25
/ea
Sold in multiples of 800 for $1,000.00

Key Features

Material - Plating Termination
Tin
Plating min - Mating
0.381µm
Pitch - Termination Interface
2.00mm
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
2.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87381-9016
Zoro #
G2754041
UPC #
-
Country of Origin
Singapore

Details

Material - Plating Termination
Tin
Plating min - Mating
0.381µm
Pitch - Termination Interface
2.00mm
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
2.00mm
Max. Cycles at Max. Process Temperature
1
Circuits (Loaded)
8
Flammability
94V-0
UL
E29179
Material - Metal
Phosphor Bronze
Voltage - Maximum
125V
Surface Mount Compatible (SMC)
Yes
Circuits (maximum)
8
PCB Locator
Yes
CSA
LR19980
Duration at Max. Process Temperature (seconds)
12
Process Temperature max. C
260
Plating min - Termination
1.270µm
Durability (mating cycles max)
25
Color - Resin
Black
Material - Plating Mating
Gold
Number of Rows
2
Current - Maximum per Contact
1.9A
Temperature Range - Operating
-55° to +105°C
Termination Interface: Style
Surface Mount
Stackable
Yes
Robotic Placement
Pick and Place Cap
Orientation
Vertical
