Shop MOLEX

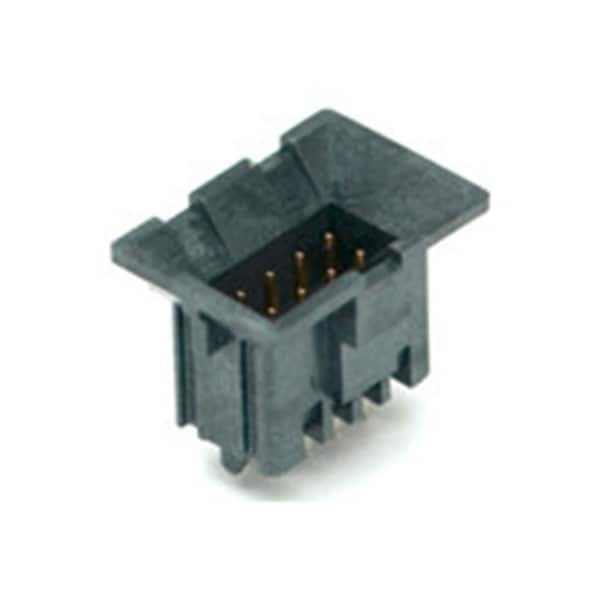

2MM Vert Header Conn 0.05AuLF 8Ckt

  • Mfr # 151013-4008

  • Zoro # G2747260

product price:
$
0.90
/ea
Sold in multiples of 80 for $72.00

Key Features

Temperature Range - Operating
-40° to +105°C
Guide to Mating Part
Yes
Orientation
Vertical
Polarized to Mating Part
Yes
Pitch - Mating Interface
2.00mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
151013-4008
Zoro #
G2747260
UPC #
-
Country of Origin
Singapore

Dimensions

PC Tail Length
2.60mm

Details

Temperature Range - Operating
-40° to +105°C
Guide to Mating Part
Yes
Orientation
Vertical
Polarized to Mating Part
Yes
Pitch - Mating Interface
2.00mm
Pitch - Termination Interface
2.00mm
Material - Resin
Liquid Crystal Polymer
Color - Resin
Black
Plating min - Mating
0.051µm
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
25
Voltage - Maximum
125V
Polarized to PCB
Yes
UL
E29179
Current - Maximum per Contact
2.0A
Circuits (maximum)
8
Circuits (Loaded)
8
Material - Plating Termination
Matte Tin
CSA
LR19980
Process Temperature max. C
260
Shrouded
Yes
Number of Rows
2
Material - Metal
Phosphor Bronze
Max. Cycles at Max. Process Temperature
1
PCB Locator
Yes
Termination Interface: Style
Through Hole
Plating min - Termination
1.270µm
Flammability
94V-0
Material - Plating Mating
Gold
