  11. 4CKT R/A MINI FIT HEADER 556904A1210

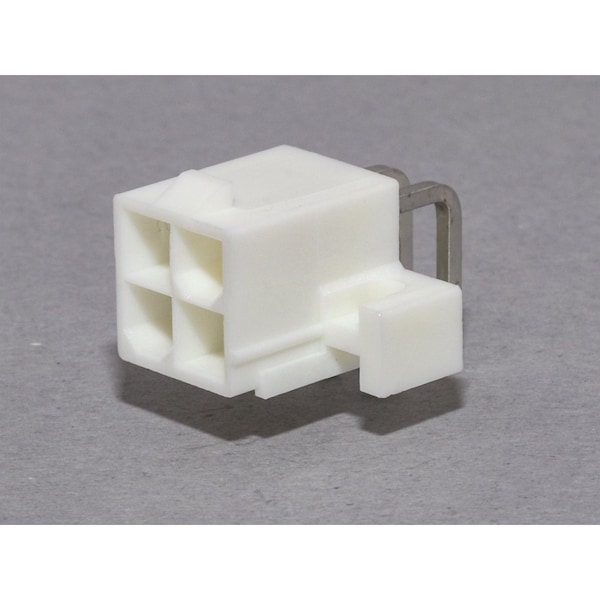

Molex 4CKT R/A MINI FIT HEADER 556904A1210 39-29-1047 - main

4CKT R/A MINI FIT HEADER 556904A1210

  • Mfr # 39-29-1047

  • Zoro # G100416944

original price: $1.35
7% off
new price: $1.25
/ea
Sold in multiples of 90 for $112.50

Key Features

UL
E29179
Max. Cycles at Max. Process Temperature
1
Shrouded
Fully
PCB Thickness - Recommended
1.78mm
Process Temperature max. C
260
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-29-1047
Zoro #
G100416944
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

UL
E29179
Max. Cycles at Max. Process Temperature
1
Shrouded
Fully
Process Temperature max. C
260
Flammability
94V-0
Lock to Mating Part
Yes
Material - Resin
Nylon
Plating min - Termination
2.540µm
PCB Locator
Yes
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Circuits (Loaded)
4
Color - Resin
Natural
Current - Maximum per Contact
13.0A
Voltage - Maximum
600V
Material - Metal
Brass
PCB Retention
Yes
Number of Rows
2
Duration at Max. Process Temperature (seconds)
5
Material - Plating Mating
Matte Tin
Orientation
Right Angle
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
4
Pitch - Mating Interface
4.20mm
Plating min - Mating
2.540µm
CSA
LR19980
Durability (mating cycles max)
30
Pitch - Termination Interface
4.20mm
Material - Plating Termination
Matte Tin
Termination Interface: Style
Through Hole
