  11. Board Connector, 3 Contact(S), 1 Row(S), Male, Right Angle, Solder Terminal, Locking, Black

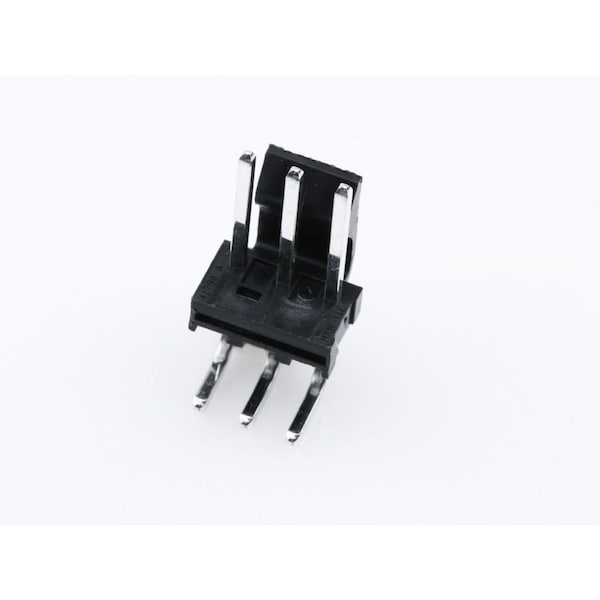

Molex Board Connector, 3 Contact(S), 1 Row(S), Male, Right Angle, Solder Terminal, Locking, Black 1718140003 - main

Board Connector, 3 Contact(S), 1 Row(S), Male, Right Angle, Solder Terminal, Locking, Black

  • Mfr # 1718140003

  • Zoro # G005789938

product price: $0.33
/ea
Sold in multiples of 300 for $99.00

Key Features

Color
Black
Insulation Material
Nylon
Max. Voltage
250V
Maximum Voltage
250 V
Application
Power, Signal, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1718140003
Zoro #
G005789938
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Item
KK 396
Color
Black
Insulation Material
Nylon
Max. Voltage
250V
Maximum Voltage
250 V
Application
Power, Signal, Wire-to-Board
Current
7 A
Series
171814
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-1
Material
Nylon
Number of Contacts
3
Features
Surface Mount Compatible
Terminal Type
Through Hole
Hole Center to Center
3.96 mm
Current Rating
7 A
Contact Finish
Tin Plated
Max. Temp.
260°C
Number of Rows
1
Flammability Rating
UL 94V-1
Terminal Finish
Nickel Plated
PCB Locator
No
Max-Temp
260
Max-Duration
30
Orientation
Right Angle
Stackable
No
Flammability
94V-1
Temperature Range - Operating
-40° to +105°C
Max-Cycle
3
Breakaway
No
Circuits (Loaded)
3
UL
E29179
Guide to Mating Part
No
Glow-Wire Capable
No
First Mate / Last Break
No
Durability (mating cycles max)
25
PCB Retention
None
Component Type
PCB Header
Current - Maximum per Contact
7.0A
Material - Resin
Nylon
Keying to Mating Part
None
Product Name
KK 396
Shrouded
Partial
Material - Plating Mating
Tin
CSA
LR19980
Pitch - Mating Interface
3.96mm
Material - Plating Termination
Nickel
Lock to Mating Part
Yes

Description

Board Connector, 3 Contact(S), 1 Row(S), Male, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle
