  11. Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Surface Mount Terminal,

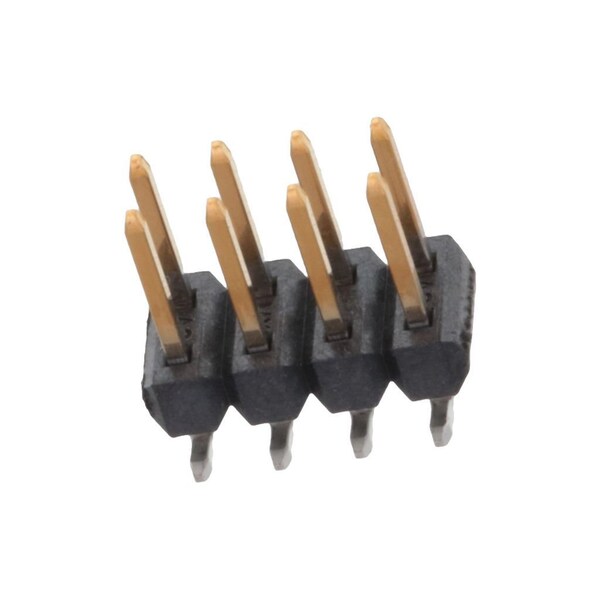

Molex Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Surface Mount Terminal, 15913080 - main

Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Surface Mount Terminal,

  • Mfr # 15913080

  • Zoro # G005892034

product price: $0.90
/ea
Sold in multiples of 94 for $84.60

Key Features

Max. Voltage
250V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
71308
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15913080
Zoro #
G005892034
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.813 µm

Details

Max. Voltage
250V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
71308
Standards
CSA Certified; UL E29179
Hole Center to Center
2.54 mm
Material
High Temperature Thermoplastic
Features
Breakaway
Color
Black
Terminal Type
Surface Mount
Terminal Finish
Tin Plated
Number of Rows
2
Number of Contacts
8
Flammability Rating
UL 94V-0
Current Rating
3 A
Contact Finish
Gold Plated
Orientation
Vertical
Circuits (Loaded)
8
Polarized to PCB
No
Flammability
94V-0
Max-Temp
260
Product Name
C-Grid
Material - Plating Mating
Gold
Plating min - Mating
0.813µm
CSA
LR19980
Polarized to Mating Part
No
Current - Maximum per Contact
3.0A
Shrouded
No
Lock to Mating Part
None
Pitch - Mating Interface
2.54mm
Max-Duration
30
Stackable
Yes
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +120°C
PCB Locator
No
PCB Retention
None
Material - Metal
Phosphor Bronze
Durability (mating cycles max)
50
Material - Plating Termination
Tin
UL
E29179
Component Type
PCB Header
Breakaway
Yes
Material - Resin
High Temperature Thermoplastic
Max-Cycle
3

Description

Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
