Polaris

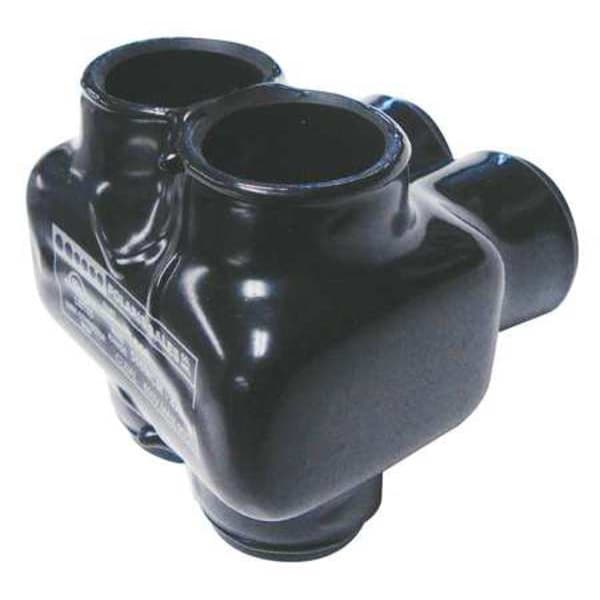

Insulated Multitap Connector, 2.87 In. L

product price: $76.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 4 AWG
  • Max. Conductor Size 500 kcmil
  • Stud Size 5/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 4 AWG
Max. Conductor Size 500 kcmil
Stud Size 5/16 in
Length 2.87 in
Width 2.81 in
Length (Straight Wireway) 2.87 in
Hex Size 5/16 in
For Stranded Copper Wire Size - Maximum 500 kcmil
Overall Length 2.81 in
Overall Width 2.87 in
For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil
Strip Length 1 3/4 in
For Stranded Copper Wire Size - Minimum 4 AWG
Conductor Cu Size Range 500 MCM – 4 AWG
Conductor Al Size Range 500 MCM – 4 AWG
Hex Wrench Size 5/16

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 2
Insulation Material Plastisol
Standards cULus, UL 486B
Screw Material Aluminum
Max. Voltage 600V AC/DC
Direct Burial Rated No
Body Material Aluminum
Head Style Hex
Minimum Operating Temperature -49 Degrees F
Finish Plastisol
Special Features Abrasion and Chemical Resistant, Insul-Tap Connectors, Suitable for Connecting Two Wires, UV Resistant, Will Not Support Combustion
Tap Shape Z
Number of Ports 2
Color Black
Torque 400 in-lb
Maximum Operating Temperature 194 Degrees F
For Conductor Material Aluminum, Copper
RoHS Compliant Yes
Maximum Voltage 600 V
Compatible with Product Type Copper and Aluminum Cables
Ul File No E186991
Temp Rating 90C, AL9CU
Max Torque 450
Env Temp Cold Temperature rated to -45C
Conductor Type Copper, Aluminum
Cu Conductor Max Amp 430
Ul Standard UL 486A/B
Al Conductor Max Amp 350
Wire Cable Class Class B, Class C
Assortment Black UV Coated Pre-Insulated Connectors
Certifications cULus
Application Splice
Conductors Count 2

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
