  11. Cgrid Sr Vt Pn 675290Mm Aug 8Ckt

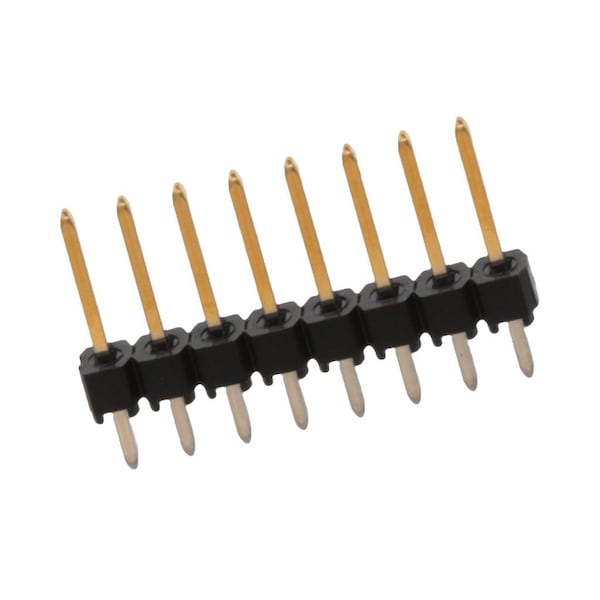

Molex Cgrid Sr Vt Pn 675290Mm Aug 8Ckt 901201088 - main

Cgrid Sr Vt Pn 675290Mm Aug 8Ckt

  • Mfr # 901201088

  • Zoro # G505985359

original price: $1.85
8% off
new price: $1.69
/ea
Sold in multiples of 70 for $118.30

Key Features

Application
Signal, Wire-to-Board
Circuits (maximum)
8
Durability (mating cycles max)
30
Material - Resin
Polyester
Color - Resin
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901201088
Zoro #
G505985359
UPC #
-
Country of Origin
Indonesia

Dimensions

PC Tail Length
2.90mm
PCB Thickness - Recommended
1.60mm

Details

Application
Signal, Wire-to-Board
Circuits (maximum)
8
Durability (mating cycles max)
30
Material - Resin
Polyester
Color - Resin
Black
Voltage - Maximum
350V AC/DC
Max. Cycles at Max. Process Temperature
1
Material - Plating Mating
Gold
Number of Rows
1
Circuits (Loaded)
8
Current - Maximum per Contact
3.0A
Material - Plating Termination
Tin
Breakaway
Yes
Flammability
94V-0
Pitch - Mating Interface
2.54mm
Orientation
Vertical
Material - Metal
Brass
Temperature Range - Operating
-55° to +125°C
UL
E29179
Duration at Max. Process Temperature (seconds)
3
Pitch - Termination Interface
2.54mm
CSA
LR19980
Termination Interface: Style
Through Hole
Process Temperature max. C
235
Keying to Mating Part
None
PCB Retention
None
Polarized to Mating Part
No
First Mate / Last Break
No
Shrouded
No
Guide to Mating Part
No
Glow-Wire Capable
No
Product Name
C-Grid III
PCB Locator
No
Polarized to PCB
No
Series
90120
Lock to Mating Part
None
Stackable
No
Component Type
PCB Header
