  11. CSE M12 8P AC MA STR PUR 1M SE UNSH BK

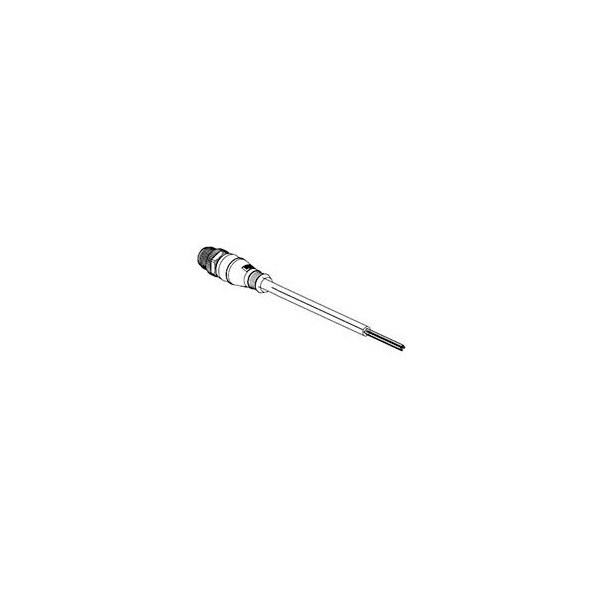

Molex CSE M12 8P AC MA STR PUR 1M SE UNSH BK 1200652383 - main

CSE M12 8P AC MA STR PUR 1M SE UNSH BK

  • Mfr # 1200652383

  • Zoro # G2756272

product price: $28.45
/ea
Sold in multiples of 24 for $682.80

Key Features

Keyway
A-coded
Temperature Range - Operating
-40°C to +90°C
Wire/Cable Type
WSOR
Current - Maximum per Contact
2.0A
Gender
Male-Pigtail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200652383
Zoro #
G2756272
UPC #
-
Country of Origin
Italy

Dimensions

Cable Length
1.0m (3.28')
Wire Size AWG
24
Cable Diameter
6.40mm (.252")

Details

Keyway
A-coded
Temperature Range - Operating
-40°C to +90°C
Wire/Cable Type
WSOR
Current - Maximum per Contact
2.0A
Gender
Male-Pigtail
Material - Coupling Nut
Nickel-plated Brass
Orientation
Straight to Pigtail
Poles
8
Color - Cable Jacket
Black
Material - Connector Body
TPU
Material - Plating Mating
Gold
Material - Cable Jacket
PUR
Voltage - Maximum
30V AC/DC
Coupling Style
Threaded
Connector End A
Micro-Change (M12)
Connector End B
Pigtail
IP Rating
IP67
Type
Single Ended
Series
120065
LED Indicator
No
Material - Contact
Brass
Product Name
Brad Safety,Micro-Change (M12)
