Shop MOLEX

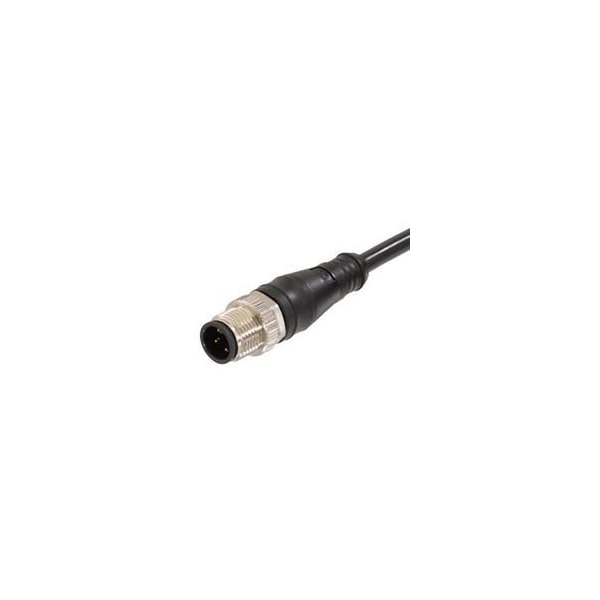

CSE M12 8P AC MA STR WSOR 5M SE UNSH BK

  • Mfr # 1200652304

  • Zoro # G2748688

product price:
$
79.35
/ea

Key Features

Cable Diameter
6.40mm (.252")
Material - Coupling Nut
Nickel-plated Brass
Cable Length
5.0m (16.40')
Keyway
Single
Voltage - Maximum
30V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200652304
Zoro #
G2748688
UPC #
-
Country of Origin
Poland

Dimensions

Cable Diameter
6.40mm (.252")
Cable Length
5.0m (16.40')
Wire Size AWG
24

Details

Material - Coupling Nut
Nickel-plated Brass
Keyway
Single
Voltage - Maximum
30V
Material - Plating Mating
Gold
Wire/Cable Type
WSOR
Coupling Style
Knurled Hexnut, Threaded
Orientation
Straight to Pigtail
Poles
8
Temperature Range - Operating
-25°C to +85°C
Current - Maximum per Contact
2.0A
Color - Cable Jacket
Black
Gender
Male-Pigtail
Material - Connector Body
TPU
Material - Cable Jacket
TPU
UL
E152210
IP Rating
IP67
LED Indicator
No
Connector End A
Micro-Change (M12)
Material - Contact
Brass
Connector End B
Pigtail
Series
120065
Product Name
Micro-Change (M12)
Type
Single Ended
