  11. CSE M8 4P AC FE STR WSOR 10M

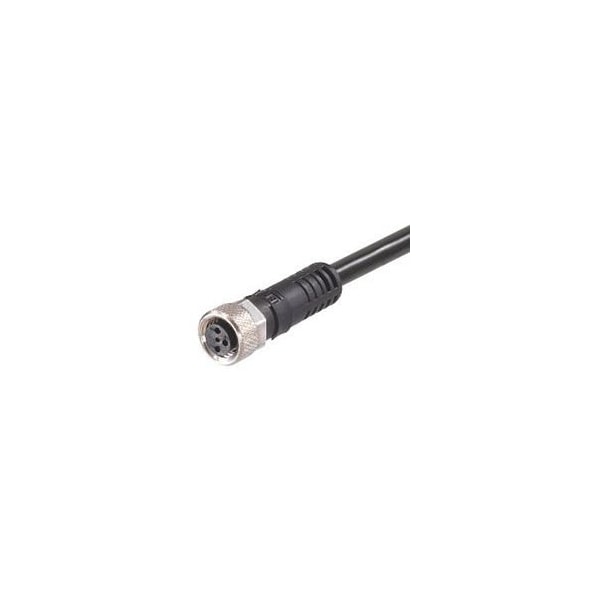

Molex CSE M8 4P AC FE STR WSOR 10M 1200868662 - main

CSE M8 4P AC FE STR WSOR 10M

  • Mfr # 1200868662

  • Zoro # G2085304

product price: $48.29
/ea
Sold in multiples of 2 for $96.58

Key Features

Coupling Style
Knurled Hexnut, Threaded
Poles
4
Gender
Female-Pigtail
Cable Length
10.0m (32.81')
Cable Diameter
4.80mm (.189")
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200868662
Zoro #
G2085304
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
10.0m (32.81')
Cable Diameter
4.80mm (.189")
Wire Size AWG
24

Details

Coupling Style
Knurled Hexnut, Threaded
Poles
4
Gender
Female-Pigtail
Material - Connector Body
TPU
Material - Coupling Nut
Nickel-plated Brass
UL
E152210
Material - Cable Jacket
TPU
Voltage - Maximum
30V
Keyway
Single
Temperature Range - Operating
-25°C to +85°C
Wire/Cable Type
WSOR
Current - Maximum per Contact
3.0A
Color - Cable Jacket
Black
Orientation
Straight to Pigtail
Material - Plating Mating
Gold
Type
Single Ended
Product Name
Nano-Change (M8)
Material - Contact
Brass
Material - O-Ring
Fluoro-elastomer
Series
120086
IP Rating
IP67
LED Indicator
No
Connector End A
Nano-Change (M8)
Connector End B
Pigtail
