  11. Fct Standard-Density Waterproof D-Sub Connector, Male, Right-Angle, Pcb Through Hole

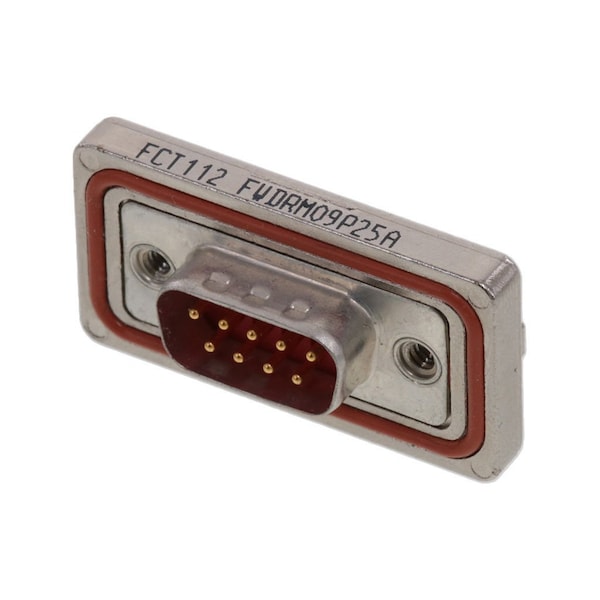

Molex Fct Standard-Density Waterproof D-Sub Connector, Male, Right-Angle, Pcb Through Hole 1731100073 - main

Fct Standard-Density Waterproof D-Sub Connector, Male, Right-Angle, Pcb Through Hole

  • Mfr # 1731100073

  • Zoro # G305788761

product price: $26.15
/ea
Sold in multiples of 3 for $78.45

Key Features

Color
Red
Series
173110
Material
PBT
Number of Ports
1
Connection Material
Copper Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1731100073
Zoro #
G305788761
UPC #
-
Country of Origin
Germany

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
10.50mm

Details

Color
Red
Series
173110
Material
PBT
Number of Ports
1
Connection Material
Copper Alloy
Hole Center to Center
2.84 mm (Mating Interface); 2.54 mm (Termination Interface)
Connector Type
Male
Terminal Type
Through Hole
Current Rating
7.5 A
IP Rating
IP67
Type
Standard Density
Max. Temp.
70°C
Contact Finish
Gold over Nickel Phosphorus
Finish
Tin Plated
Number of Contacts
9
Number of Rows
2
Temperature Range - Operating
-25° to +70°C
Product Name
FCT Products
Plating - Shell
Tin
Polarized to PCB
Yes
PCB Locator
Yes
Panel Mount Method
Thread-In
Orientation
Right-Angle
PCB Retention
Yes
Polarized to Mating Part
Yes
Material - Resin
PBT
Material - Shell
Brass
Pitch - Mating Interface
2.84mm
Shielded
Yes
Waterproof / Dustproof
Yes
Panel Mount
Rear
Current - Maximum per Contact
7.5A
Durability (mating cycles max)
500
Circuits (Loaded)
9
