  9. Headers & Wire Housings 3.5 Wtb Wafer Assy R Wafer Assy Ra 13Ckt

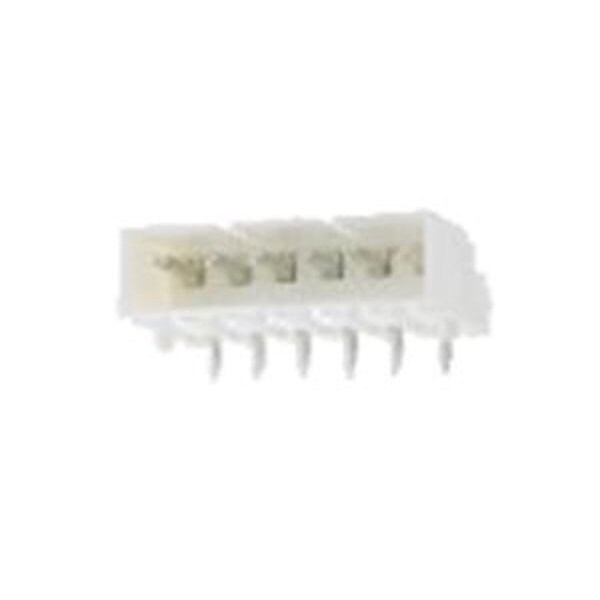

Molex Headers & Wire Housings 3.5 Wtb Wafer Assy R Wafer Assy Ra 13Ckt 532591329 - main

Headers & Wire Housings 3.5 Wtb Wafer Assy R Wafer Assy Ra 13Ckt

  • Mfr # 532591329

  • Zoro # G505911662

product price: $0.55
/ea
Sold in multiples of 200 for $110.00

Key Features

Number of Rows
1
Series
53259
Max. Voltage
250V
Application
Power, Wire-to-Board
Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
532591329
Zoro #
G505911662
UPC #
-
Country of Origin
Japan

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Number of Rows
1
Series
53259
Max. Voltage
250V
Application
Power, Wire-to-Board
Material
Brass
Max. Temp.
105°C
Standards
CSA Certified; UL E29179
Hole Center to Center
3.5 mm
Terminal Type
Through Hole
Number of Contacts
13
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
5.5 A
Contact Finish
Tin Plated
Breakaway
No
Material - Plating Mating
Tin
Flammability
94V-0
Lock to Mating Part
Yes
PCB Retention
None
Pitch - Mating Interface
3.50mm
Guide to Mating Part
Yes
Stackable
No
Polarized to PCB
Yes
Product Name
Mighty-SPOX
First Mate / Last Break
No
UL
E29179
Component Type
PCB Header
CSA
LR19980
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
13
PCB Locator
Yes
Keying to Mating Part
Yes
Glow-Wire Capable
No
Shrouded
Fully
Orientation
Right Angle
Material - Plating Termination
Tin
Durability (mating cycles max)
30
Current - Maximum per Contact
5.5A
