  11. Insulation-Displacement Wire Connector, 28 AWG Max, Bare, Polyester Insulation, 250 V, 1.2 A

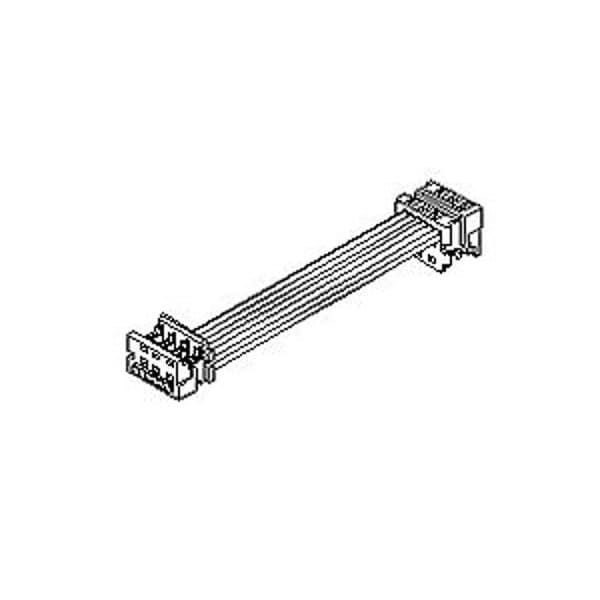

Molex Insulation-Displacement Wire Connector, 28 AWG Max, Bare, Polyester Insulation, 250 V, 1.2 A 923170810 - main

Insulation-Displacement Wire Connector, 28 AWG Max, Bare, Polyester Insulation, 250 V, 1.2 A

  • Mfr # 923170810

  • Zoro # G905965654

product price: $1.15
/ea
Sold in multiples of 105 for $120.75

Key Features

Type
Insulation-Displacement
Color
Bare
Maximum Wire Size
28 AWG
Insulation Material
Polyester
Maximum Voltage
250 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
923170810
Zoro #
G905965654
UPC #
800754786836
Country of Origin
Poland

Dimensions

Maximum Wire Size
28 AWG
Length
0.1 m
Contact Plating Thickness
2.032 µm
Cable Length
0.10m

Details

Item
Insulation-Displacement Wire Connector
Type
Insulation-Displacement
Color
Bare
Insulation Material
Polyester
Maximum Voltage
250 V
Current
1.2 A
RoHS Compliant
Yes
Material
Phosphor Bronze
Series
92317
Number of Contacts
8
Number of Rows
2
Wire Type
PVC
Finish
Tin Plated
Hole Center to Center
1.27 mm
Material - Plating Termination
Tin
Pitch - Mating Interface
1.27mm
Connector to Connector
Picoflex IDT-to-IDT Z Style
Plating min - Mating
2.032µm
Material - Plating Mating
Tin
Assembly Configuration
Dual Ended Connectors
Wire/Cable Type
PVC, Ribbon Cable
Lock to Mating Part
None
Circuits (Loaded)
8
Waterproof / Dustproof
No
Single Ended
No
