  11. LPH Rcpt Assy RtAn 08 Pwr 20 Sig P and G

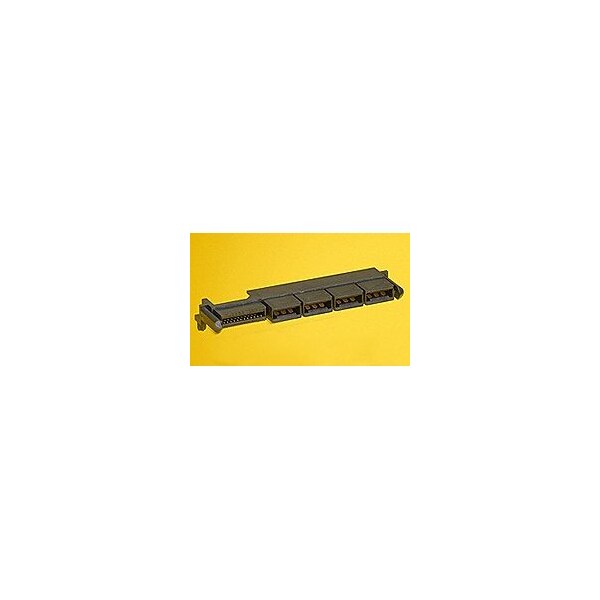

Molex LPH Rcpt Assy RtAn 08 Pwr 20 Sig P and G 45984-8432 - main

LPH Rcpt Assy RtAn 08 Pwr 20 Sig P and G

  • Mfr # 45984-8432

  • Zoro # G7771398

product price: $13.39
/ea
Sold in multiples of 10 for $133.90

Key Features

Type
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45984-8432
Zoro #
G7771398
UPC #
822350775854
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm

Details

Item
Power Connector
Type
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Current
23 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Sub-Category
PCB Receptacles
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Terminal Type
Through Hole
Features
Surface Mount Compatible
Hole Center to Center
1.27 mm, 12 mm
Contact Finish
Gold Plated
Current Rating
23 A
Number of Contacts
28
Number of Rows
2
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated

Description
