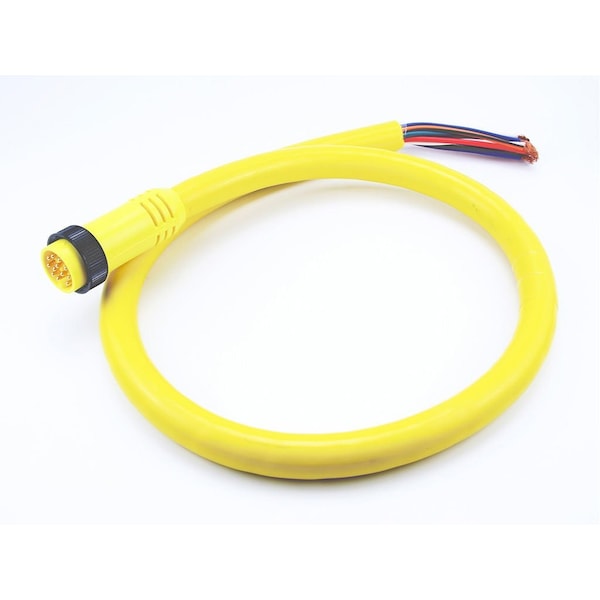

MC 12P MP 12 16/12 PVC
Mfr # 1300080234
Zoro # G2078514
product price:Â $218.99
/ea
Free Shipping & Returns
Key Features
Current - Maximum per Contact
5.0A
Orientation
Straight to Pigtail
Material - Plating Mating
Gold
Cable Diameter
18.03mm (.710")
Material - Coupling Nut
Black Epoxy Coated Zinc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1300080234
- Zoro #
- G2078514
- UPC #
- 78678834263
- Country of Origin
- Mexico
Dimensions
- Cable Diameter
- 18.03mm (.710")
- Wire Size AWG
- 16
- Cable Length
- 3.66m (12.0')
Details
- Current - Maximum per Contact
- 5.0A
- Orientation
- Straight to Pigtail
- Material - Plating Mating
- Gold
- Material - Coupling Nut
- Black Epoxy Coated Zinc
- Keyway
- Single
- Color - Cable Jacket
- Yellow
- Wire/Cable Type
- STOOW
- Voltage - Maximum
- 600V
- Material - Connector Body
- PVC
- Coupling Style
- Threaded
- Gender
- Male-Pigtail
- CSA
- LR6837
- Temperature Range - Operating
- -20°C to +105°C
- Material - Cable Jacket
- PVC
- Poles
- 12
- UL
- E152210
