  11. MC 2P FP 20 16/2 PVC

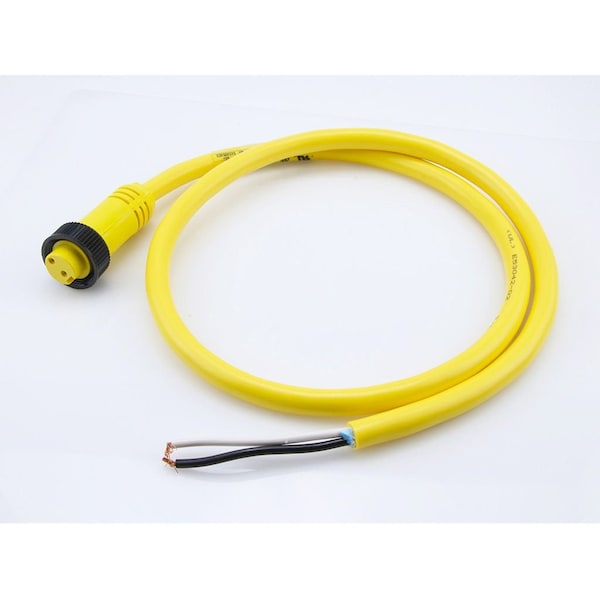

Molex MC 2P FP 20 16/2 PVC 1300060102 - main

MC 2P FP 20 16/2 PVC

  • Mfr # 1300060102

  • Zoro # G2083231

product price: $62.39
/ea
Sold in multiples of 2 for $124.78

Key Features

Temperature Range - Operating
-20°C to +105°C
UL
E152210
Color - Cable Jacket
Yellow
Material - Plating Mating
Gold
CSA
LR6837
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1300060102
Zoro #
G2083231
UPC #
78678842937
Country of Origin
Mexico

Dimensions

Wire Size AWG
16
Cable Length
6.10m (20.0')
Cable Diameter
9.40mm (.370")

Details

Temperature Range - Operating
-20°C to +105°C
UL
E152210
Color - Cable Jacket
Yellow
Material - Plating Mating
Gold
CSA
LR6837
Material - Cable Jacket
PVC
Orientation
Straight to Pigtail
Coupling Style
Threaded
Poles
2
Wire/Cable Type
STOOW
Keyway
Single
Current - Maximum per Contact
13.0A
Material - Coupling Nut
Black Epoxy Coated Zinc
Gender
Female-Pigtail
Material - Connector Body
PVC
Voltage - Maximum
600V
Product Name
Mini-Change
Connector End B
Pigtail
Material - Contact
Copper Alloy
Connector End A
Mini-Change
Series
130006
Type
Single Ended
LED Indicator
No
IP Rating
IP67
