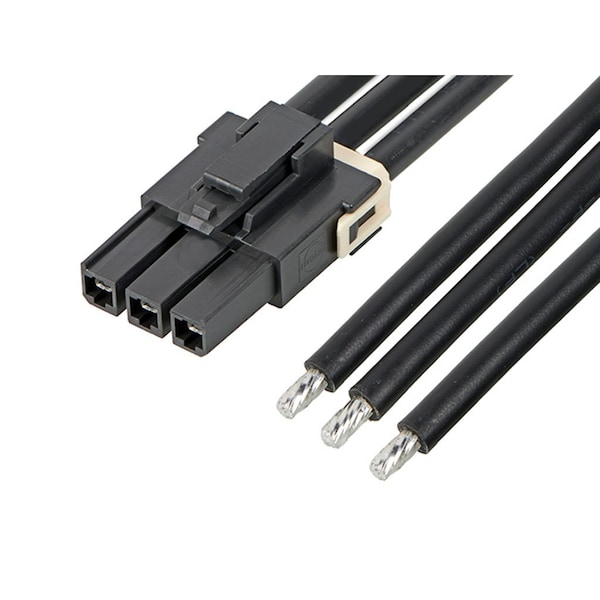

Molex Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin 2164011031 - main
Shop MOLEX

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin

  • Mfr # 2164011031

  • Zoro # G305925944

product price:  $3.55
/ea
Sold in multiples of 20 for $71.00

Key Features

Series
216401
Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly, High-Power Assembly
Cable Length
150.00mm
Wire/Cable Type
UL 1015
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2164011031
Zoro #
G305925944
UPC #
-
Country of Origin
Thailand

Dimensions

Cable Length
150.00mm
Wire Size AWG
12
Wire Insulation Diameter
4.06mm max.

Details

Series
216401
Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly, High-Power Assembly
Wire/Cable Type
UL 1015
Circuits (Loaded)
3
Pitch - Mating Interface
5.70mm
Material - Metal
High Conductivity Copper
Lock to Mating Part
Yes
Material - Resin
Nylon
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Current - Maximum per Contact
25.0A
Voltage - Maximum
600V AC (RMS)/DC
Number of Rows
1
Gender
Female-Pigtail
Single Ended
Yes
Termination Interface: Style
Crimp or Compression
Assembly Configuration
Single Ended Connector
Overmolded
No
Connector to Connector
Mega-Fit-to-Pigtail
Product Name
Mega-Fit
Color - Resin
Black

Description

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin Plated
