Shop MOLEX

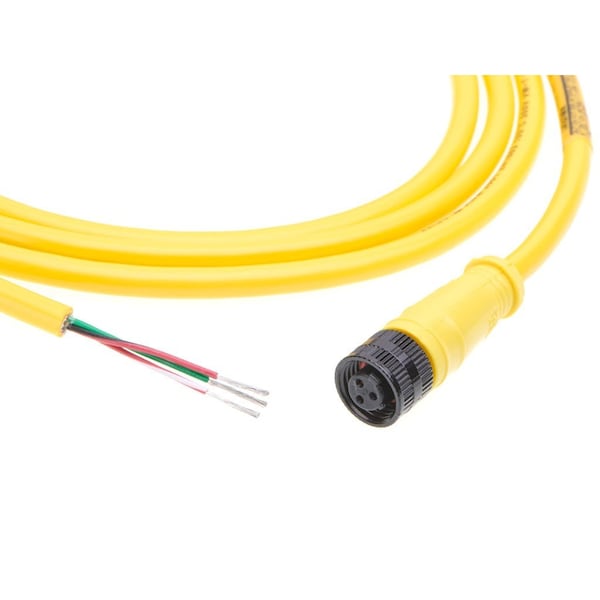

MIC 3P FP 6FT. 22 AUTOMOTIVE

  • Mfr # 1200720171

  • Zoro # G2753953

product price:  $49.69
/ea
Sold in multiples of 2 for $99.38

Key Features

Poles
3
CSA
LR6837
Color - Cable Jacket
Yellow
Material - Coupling Nut
Black Epoxy Coated Zinc
Material - Contact
Copper Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200720171
Zoro #
G2753953
UPC #
781725531221
Country of Origin
Mexico

Dimensions

Cable Diameter
5.72mm (.225")
Wire Size (AWG)
22
Cable Length
1.83m (6.0')

Details

Poles
3
CSA
LR6837
Color - Cable Jacket
Yellow
Material - Coupling Nut
Black Epoxy Coated Zinc
Material - Contact
Copper Alloy
UL
E152210
Orientation
Straight to Pigtail
Material - Connector Body
TPE
Voltage - Maximum
250V AC/DC
Current - Maximum per Contact
4.0A
Material - Plating Mating
Gold
Coupling Style
Threaded
Material - Cable Jacket
PVC
Keyway
Dual
Connector End A
Micro-Change (1/2" - 20 UNF)
Gender
Female-Pigtail
Wire/Cable Type
UL 2661
Type
Single Ended
Series
120072
LED Indicator
No
Temperature Range - Operating
-20° to +105°C
Material - O-Ring
Nitrile Rubber
Connector End B
Pigtail
IP Rating
IP67
Protocol
PROFIBUS
Product Name
Micro-Change (1/2" - 20 UNF)
