  9. Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X3

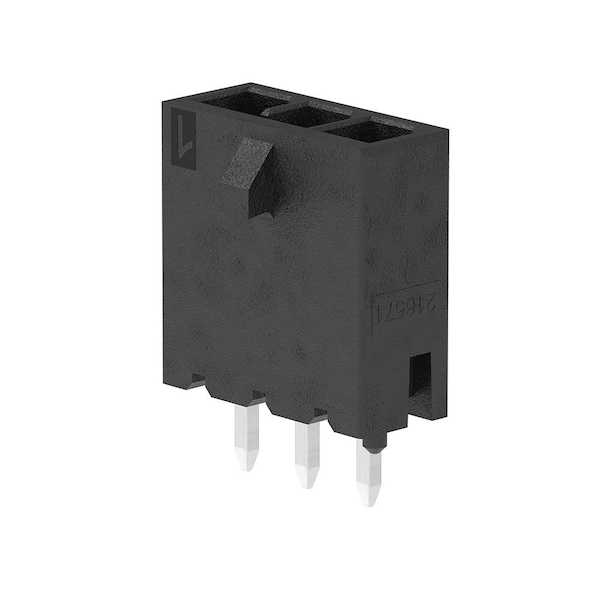

Molex Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X3 2165713003 - main

Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X3

  • Mfr # 2165713003

  • Zoro # G205909921

product price: $1.99
/ea
Sold in multiples of 55 for $109.45

Key Features

Number of Rows
1
Series
216571
Application
Power, Wire-to-Board
Voltage - Maximum
600V AC (RMS)/DC
Max-Duration
30
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2165713003
Zoro #
G205909921
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
3.18mm
PCB Thickness - Recommended
1.57mm

Details

Number of Rows
1
Series
216571
Application
Power, Wire-to-Board
Voltage - Maximum
600V AC (RMS)/DC
Max-Duration
30
UL
E29179
Orientation
Vertical
CSA
LR19980
Breakaway
No
Material - Plating Termination
Matte Tin
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Color - Resin
Black
Product Name
Micro-Fit+
Durability (mating cycles max)
200
Current - Maximum per Contact
12.5A
Component Type
PCB Header
Flammability
94V-0
Material - Plating Mating
Gold
Material - Resin
Liquid Crystal Polymer
Plating min - Mating
0.762µm
Circuits (Loaded)
3
First Mate / Last Break
No
Shrouded
Yes
Pitch - Mating Interface
3.00mm
PCB Retention
Yes
Polarized to PCB
Yes
Max-Temp
260
Material - Metal
High Copper Alloy
Lock to Mating Part
Yes
Termination Interface Style
Through Hole
Glow-Wire Capable
Yes
Keying to Mating Part
Yes
Max-Cycle
3
