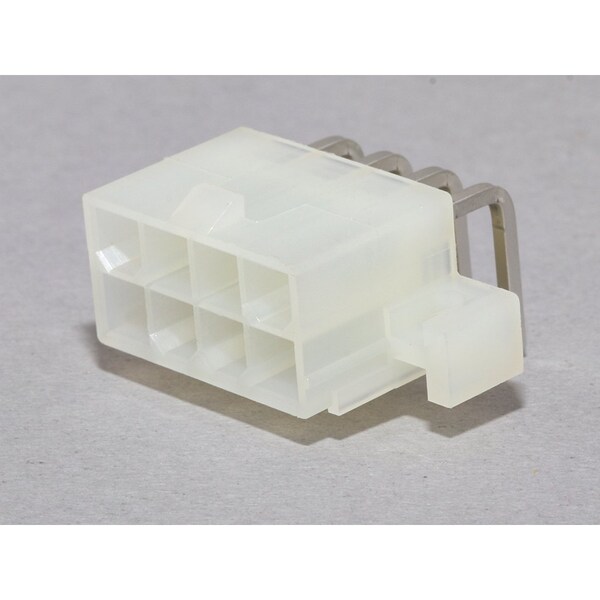

8CKT R/A MINI FIT HEADER 556908A1

  • Mfr # 39-29-1088
  • Zoro # G400415418
product price:
$
1.55
/ea
Sold in multiples of 80 for $124.00

Key Features

Shrouded
Fully
Plating min - Mating
2.540µm
Pitch - Termination Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
Max. Cycles at Max. Process Temperature
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-29-1088
Zoro #
G400415418
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Shrouded
Fully
Plating min - Mating
2.540µm
Pitch - Termination Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
Max. Cycles at Max. Process Temperature
1
Durability (mating cycles max)
30
Process Temperature max. C
260
Material - Metal
Brass
UL
E29179
Color - Resin
Natural
Duration at Max. Process Temperature (seconds)
5
Material - Resin
Nylon
Orientation
Right Angle
Voltage - Maximum
600V
PCB Locator
Yes
Circuits (Loaded)
8
Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
Material - Plating Termination
Matte Tin
Polarized to PCB
Yes
PCB Retention
Yes
Circuits (maximum)
8
Pitch - Mating Interface
4.20mm
Number of Rows
2
Material - Plating Mating
Matte Tin
Lock to Mating Part
Yes
Plating min - Termination
2.540µm
Flammability
94V-2
Current - Maximum per Contact
13.0A
CSA
LR19980
