Shop MOLEX

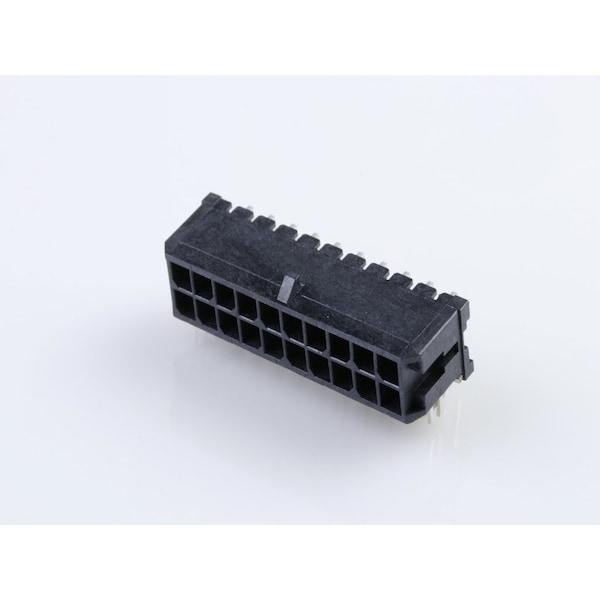

Microfit 3.0 RA PTH w/clip DR Tin 20 Ckt

  • Mfr # 43045-2021

  • Zoro # G4029983

product price:
$
4.49
/ea
Sold in multiples of 200 for $898.00

Key Features

PCB Locator
Yes
PCB Retention
Yes
Current - Maximum per Contact
8.5A
Number of Rows
2
Material - Plating Termination
Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43045-2021
Zoro #
G4029983
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
Mated Height
10.06mm

Details

PCB Locator
Yes
PCB Retention
Yes
Current - Maximum per Contact
8.5A
Number of Rows
2
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
CSA
LR19980
Process Temperature max. C
260
Surface Mount Compatible (SMC)
Yes
Flammability
94V-0
Shrouded
Fully
Pitch - Mating Interface
3.00mm
UL
E29179
Material - Plating Mating
Tin
Circuits (maximum)
20
Circuits (Loaded)
20
Plating min - Mating
0.254µm
Duration at Max. Process Temperature (seconds)
30
Polarized to PCB
Yes
Durability (mating cycles max)
30
Max. Cycles at Max. Process Temperature
3
Voltage - Maximum
600V
Glow-Wire Capable
Yes
Termination Interface: Style
Through Hole
Material - Metal
Brass
Orientation
Right Angle
Temperature Range - Operating
-40° to +105°C
Color - Resin
Black
