Shop MOLEX

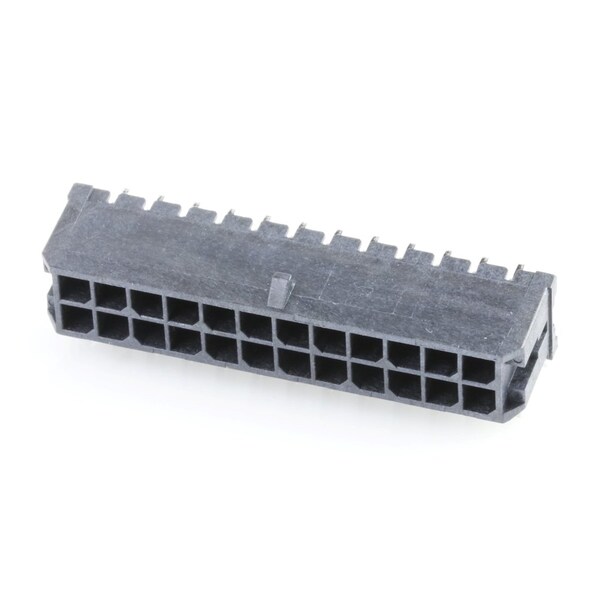

Microfit 3.0 RA PTH w/clip DR Tin 24 Ckt

  • Mfr # 43045-2421
  • Zoro # G4043012
product price:
$
5.85
/ea
Sold in multiples of 576 for $3,369.60

Key Features

Durability (mating cycles max)
30
PCB Thickness - Recommended
1.60mm
Voltage - Maximum
600V
Pitch - Mating Interface
3.00mm
Number of Rows
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43045-2421
Zoro #
G4043012
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
Mated Height
10.06mm

Details

Durability (mating cycles max)
30
Voltage - Maximum
600V
Pitch - Mating Interface
3.00mm
Number of Rows
2
Surface Mount Compatible (SMC)
Yes
Current - Maximum per Contact
8.5A
Flammability
94V-0
Process Temperature max. C
260
Circuits (Loaded)
24
PCB Locator
Yes
Circuits (maximum)
24
Temperature Range - Operating
-40° to +105°C
Termination Interface: Style
Through Hole
Plating min - Mating
0.254µm
Polarized to PCB
Yes
Max. Cycles at Max. Process Temperature
3
Material - Metal
Brass
PCB Retention
Yes
Material - Resin
High Temperature Thermoplastic
CSA
LR19980
Material - Plating Termination
Tin
UL
E29179
Orientation
Right Angle
Color - Resin
Black
Duration at Max. Process Temperature (seconds)
30
Glow-Wire Capable
Yes
Material - Plating Mating
Tin
Shrouded
Fully

Documents & Resources
