  9. Minifit Sr Hdr Vert 125 Clip 2 Ckt Gold

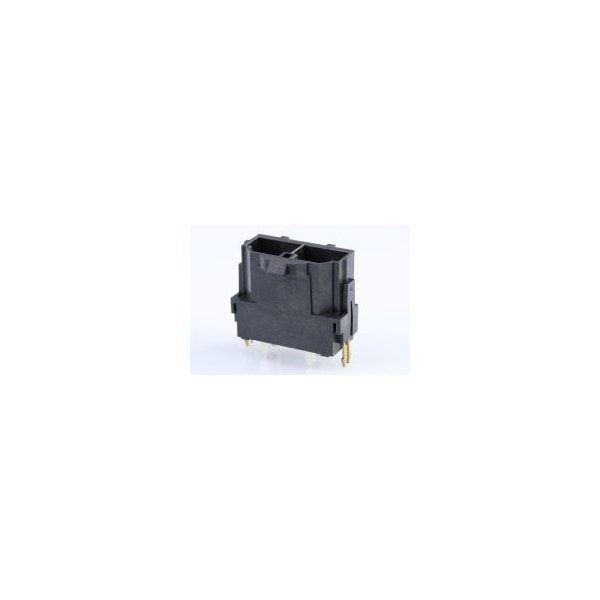

Molex Minifit Sr Hdr Vert 125 Clip 2 Ckt Gold 428192233 - main

Minifit Sr Hdr Vert 125 Clip 2 Ckt Gold

  • Mfr # 428192233

  • Zoro # G505910498

product price: $5.19
/ea
Sold in multiples of 20 for $103.80

Key Features

Color
Black
Number of Rows
1
Series
42819
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
428192233
Zoro #
G505910498
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
5.10mm
PCB Thickness - Recommended
3.18mm

Details

Color
Black
Number of Rows
1
Series
42819
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Max. Temp.
235°C
Material
High Temperature Thermoplastic
Hole Center to Center
1 mm
Terminal Type
Through Hole
Current Rating
50 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Number of Contacts
2
Durability (mating cycles max)
100
Material - Metal
Brass
Material - Resin
High Temperature Thermoplastic
Polarized to PCB
Yes
First Mate / Last Break
No
Flammability
94V-0
Max-Temp
235
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Max-Cycle
3
Orientation
Vertical
Circuits (Loaded)
2
Pitch - Mating Interface
10.00mm
PCB Locator
Yes
Guide to Mating Part
No
Plating min - Mating
0.762µm
Keying to Mating Part
None
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Lock to Mating Part
Yes
UL
E29179
Material - Plating Mating
Gold
Max-Duration
30
Stackable
No
Product Name
Mini-Fit Sr.
Current - Maximum per Contact
50.0A
CSA
LR19980
Component Type
PCB Header
PCB Retention
Yes
Breakaway
No
