  11. NC-3P-3W-FE-ST-2M-PVC

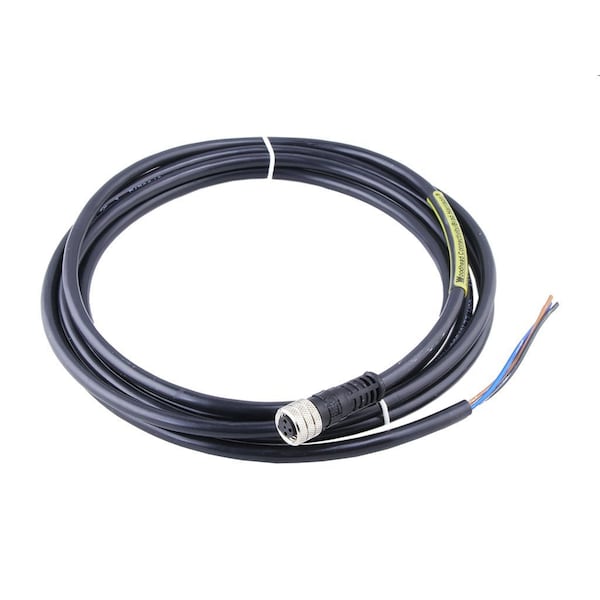

Molex NC-3P-3W-FE-ST-2M-PVC 1200270066 - main

NC-3P-3W-FE-ST-2M-PVC

  • Mfr # 1200270066

  • Zoro # G200440221

product price: $14.29
/ea
Sold in multiples of 6 for $85.74

Key Features

Cable Length
2 m
IP Rating
IP67
Keyway
Single
Type
Single Ended
Orientation
Straight to Pigtail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200270066
Zoro #
G200440221
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
2 m
Cable Diameter
4.70mm (.185")
Wire Size
24 AWG

Details

IP Rating
IP67
Keyway
Single
Type
Single Ended
Orientation
Straight to Pigtail
Coupling Style
Threaded
Material - Connector Body
PUR
Voltage - Maximum
30V
Poles
3
Gender
Female-Pigtail
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-25°C to +80°C
UL
E152210
Material - Plating Mating
Gold
Wire/Cable Type
UL 2464
Current - Maximum per Contact
3.0A
Material - O-Ring
Fluoro-elastomer
LED Indicator
No
Connector End A
Nano-Change (M8)
Series
120027
Product Name
Nano-Change (M8)
Connector End B
Pigtail
Material - Contact
Copper Alloy
Cable Jacket Material
PVC
Cable Jacket Color
Black
Item
Sensor Receptacle

Description
