Shop MOLEX

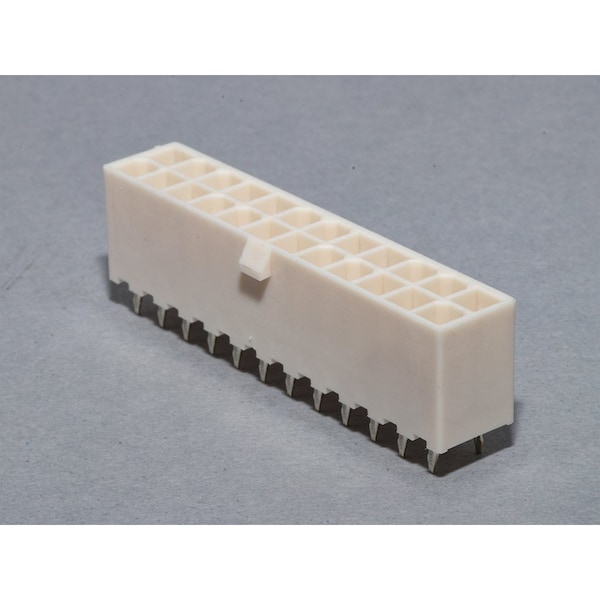

New Mini Fit Header Assy 24Ckt

  • Mfr # 39-28-8240

  • Zoro # G4037604

product price:  $4.59
/ea
Sold in multiples of 21 for $96.39

Key Features

CSA
LR19980
PC Tail Length
3.50mm
Shrouded
Fully
Number of Rows
2
Circuits (maximum)
24
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-8240
Zoro #
G4037604
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

CSA
LR19980
Shrouded
Fully
Number of Rows
2
Circuits (maximum)
24
Flammability
94V-0
Polarized to PCB
Yes
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Durability (mating cycles max)
30
Plating min - Mating
0.889µm
Max. Cycles at Max. Process Temperature
1
Material - Metal
Brass
Pitch - Termination Interface
4.20mm
Pitch - Mating Interface
4.20mm
Color - Resin
Natural
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Material - Resin
Nylon
Voltage - Maximum
600V
Circuits (Loaded)
24
Plating min - Termination
0.889µm
Termination Interface: Style
Through Hole
Current - Maximum per Contact
9.0A
UL
E29179
PCB Locator
Yes
Orientation
Vertical
Process Temperature max. C
240
Polarized to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
