Shop MOLEX

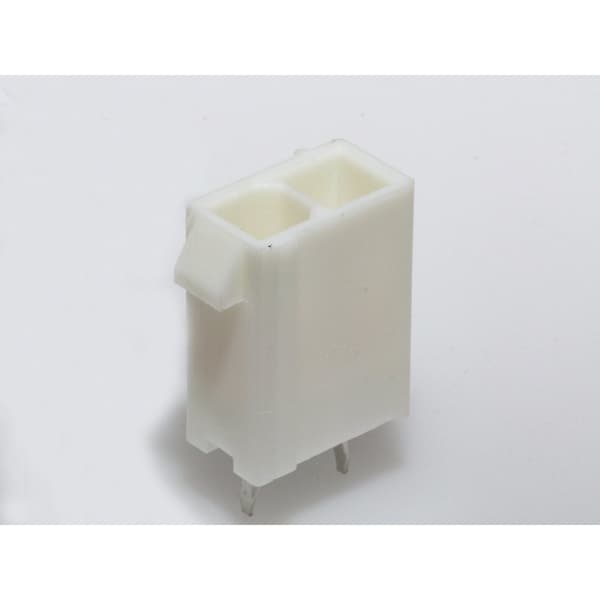

New Mini Fit Header Assy 2Ckt

  • Mfr # 39-28-8020
  • Zoro # G4035540
product price:
$
0.71
/ea
Sold in multiples of 250 for $177.50

Key Features

Plating min - Termination
0.889µm
Color - Resin
Natural
PC Tail Length
3.50mm
Polarized to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-8020
Zoro #
G4035540
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Plating min - Termination
0.889µm
Color - Resin
Natural
Polarized to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Circuits (maximum)
2
Orientation
Vertical
Process Temperature max. C
240
PCB Locator
Yes
Flammability
94V-0
Max. Cycles at Max. Process Temperature
1
Number of Rows
2
CSA
LR19980
Voltage - Maximum
600V
Shrouded
Fully
Material - Metal
Brass
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Termination Interface: Style
Through Hole
Pitch - Mating Interface
4.20mm
Plating min - Mating
0.889µm
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Pitch - Termination Interface
4.20mm
UL
E29179
Circuits (Loaded)
2
Durability (mating cycles max)
30
Current - Maximum per Contact
9.0A
Lock to Mating Part
Yes
Material - Resin
Nylon
