  9. Rectangular Cable Assemblies Clickmate 8Ckt Cbl Assy Sr 300Mm Beige

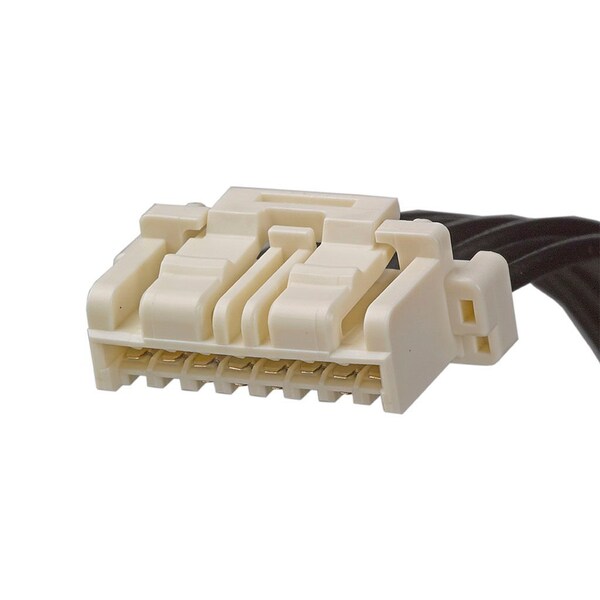

Molex Rectangular Cable Assemblies Clickmate 8Ckt Cbl Assy Sr 300Mm Beige 151350803 - main

Rectangular Cable Assemblies Clickmate 8Ckt Cbl Assy Sr 300Mm Beige

  • Mfr # 151350803

  • Zoro # G405789705

product price: $3.75
/ea
Sold in multiples of 19 for $71.25

Key Features

Type
Discrete Wire Assembly
Color
Beige
Number of Rows
1
Insulation Material
PBT
Maximum Voltage
100 V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
151350803
Zoro #
G405789705
UPC #
-
Country of Origin
China

Dimensions

Length
300 mm
Max. Insulation Dia.
1.1 mm
Contact Plating Thickness
0.406 µm
Wire Size (AWG)
24
Cable Length
300.00mm
Wire Insulation Diameter
1.10mm

Details

Item
CLIK-Mate
Type
Discrete Wire Assembly
Color
Beige
Number of Rows
1
Insulation Material
PBT
Maximum Voltage
100 V AC/DC
Current
1.5 A
Material
PBT
Series
15135
Connector Type
Male-Male
Hole Center to Center
1.5 mm
Current Rating
1.5 A
Number of Contacts
8
Terminal Type
Crimp or Compression
Max. Voltage
100V AC/DC
Contact Finish
Tin Plated
Application
Signal, Wire-to-Board
Wire Range
24 AWG
Terminal Finish
Tin Plated
Connector to Connector
CLIK-Mate-to-CLIK-Mate
Current - Maximum per Contact
2.0A
Assembly Configuration
Dual Ended Connectors
Pitch - Mating Interface
1.50mm
Plating min - Mating
0.406µm
Material - Metal
Copper Alloy
Single Ended
No
Circuits (Loaded)
8
Overmolded
No
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Product Name
CLIK-Mate
Wire/Cable Type
UL 1061
Lock to Mating Part
Yes
Material - Resin
PBT
Voltage - Maximum
100V AC (RMS)/DC
