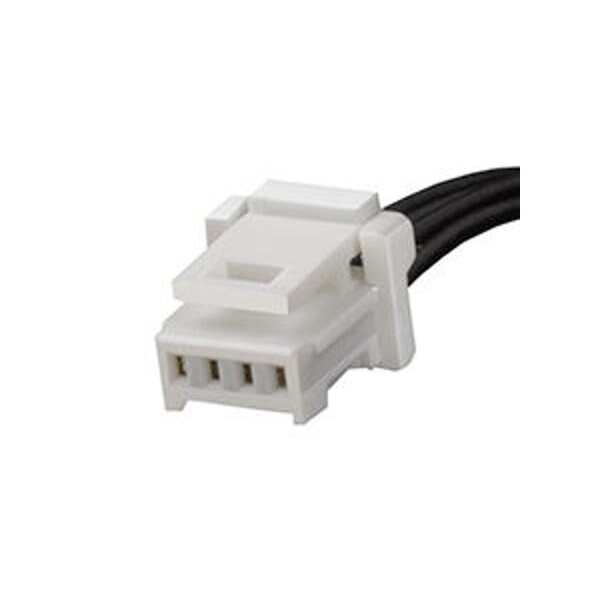

Rectangular Cable Assemblies Pico-Clasp 4Ckt Cbl Assy Sr 450Mm White

  • Mfr # 151330405

  • Zoro # G205925914


product price: $4.69
/ea
Sold in multiples of 20 for $93.80

Key Features

Cable Length
450.00mm
Application
Signal, Wire-to-Board
Type
Discrete Wire Assembly
Series
15133
Wire Size AWG
28
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
151330405
Zoro #
G205925914
UPC #
-
Country of Origin
China

Dimensions

Cable Length
450.00mm
Wire Size AWG
28
Wire Insulation Diameter
0.60mm

Details

Application
Signal, Wire-to-Board
Type
Discrete Wire Assembly
Series
15133
Material - Plating Termination
Tin
Voltage - Maximum
50V AC (RMS)/DC
Gender
Female-Female
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Current - Maximum per Contact
1.0A
Pitch - Mating Interface
1.00mm
Number of Rows
1
Material - Resin
Nylon
Plating min - Termination
1.000µm
Lock to Mating Part
Yes
Plating min - Mating
1.000µm
Wire/Cable Type
UL 1571
Color - Resin
White
Termination Interface: Style
Crimp or Compression
Circuits (Loaded)
4
Connector to Connector
Pico-Clasp-to-Pico-Clasp
Product Name
Pico-Clasp
Single Ended
No
Overmolded
No
Assembly Configuration
Dual Ended Connectors
