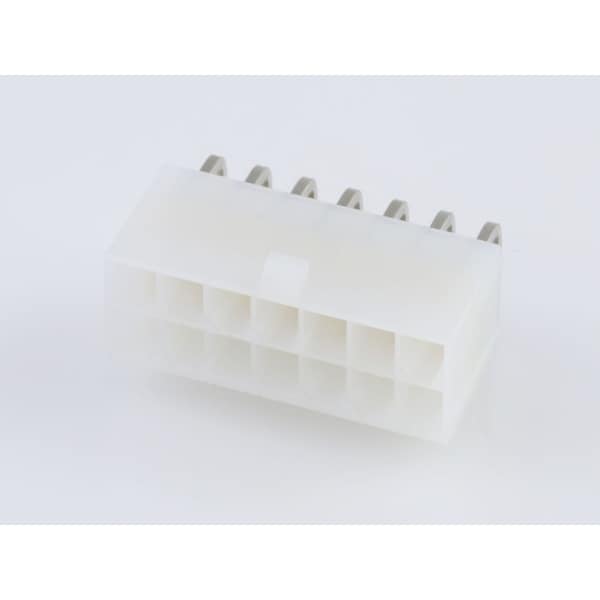

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 39301141

  • Zoro # G405911212

product price:
$
3.49
/ea
Sold in multiples of 30 for $104.70

Key Features

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39301141
Zoro #
G405911212
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
240°C
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Material
Nylon
Current Rating
13 A
Flammability Rating
UL 94V-2
Contact Finish
Gold Plated
Terminal Finish
Matte Tin Plated
Number of Contacts
14
Guide to Mating Part
No
Keying to Mating Part
None
Glow-Wire Capable
No
Plating min - Mating
0.762µm
Current - Maximum per Contact
13.0A
Component Type
PCB Header
Breakaway
No
Orientation
Right Angle
Max-Cycle
1
Max-Duration
5
Material - Metal
Brass
Material - Plating Termination
Matte Tin
Stackable
No
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Max-Temp
240
PCB Locator
Yes
Circuits (Loaded)
14
Material - Resin
Nylon
Polarized to PCB
Yes
CSA
LR19980
Lock to Mating Part
Yes
Durability (mating cycles max)
30
First Mate / Last Break
No
PCB Retention
Yes
Polarized to Mating Part
Yes
Product Name
Mini-Fit Jr.
UL
E29179
Material - Plating Mating
Gold
Flammability
94V-2
Pitch - Mating Interface
4.20mm
