Shop MOLEX

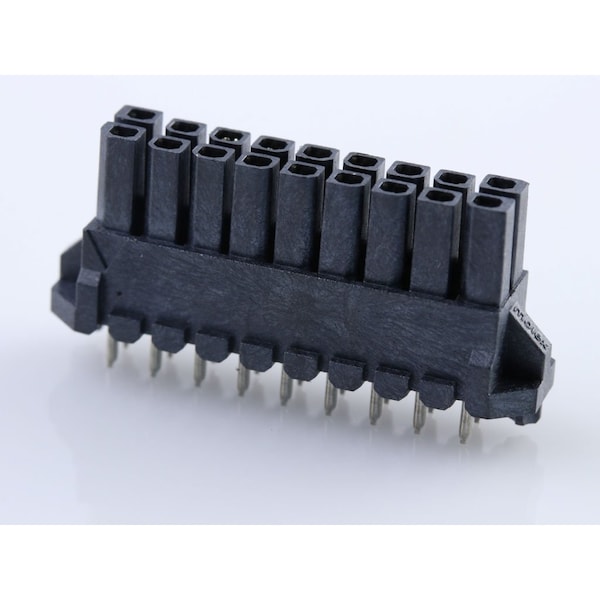

Rectangular Power Connector, 18 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447691801

  • Zoro # G205910583

product price:  $4.65
/ea
Sold in multiples of 15 for $69.75

Key Features

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
447691801
Zoro #
G205910583
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
2.54 µm
PC Tail Length
3.40mm
PCB Thickness - Recommended
1.57mm

Details

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
Material
Liquid Crystal Polymer
Features
Surface Mount Compatible
Max. Temp.
260°C
Hole Center to Center
3 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Current Rating
8.5 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Number of Contacts
18
PCB Retention
Yes
Product Name
Micro-Fit BMI
Glow-Wire Capable
No
Max-Cycle
1
Polarized to Mating Part
Yes
Material - Metal
Phosphor Bronze
Material - Resin
Liquid Crystal Polymer
Max-Duration
5
Component Type
PCB Receptacle
Plating min - Mating
2.540µm
PCB Locator
Yes
Material - Plating Mating
Tin
Current - Maximum per Contact
8.5A
CSA
LR19980
Circuits (Loaded)
18
Max-Temp
260
Durability (mating cycles max)
30
Material - Plating Termination
Tin
UL
E29179
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Polarized to PCB
Yes
Pitch - Mating Interface
3.00mm
Flammability
94V-0
