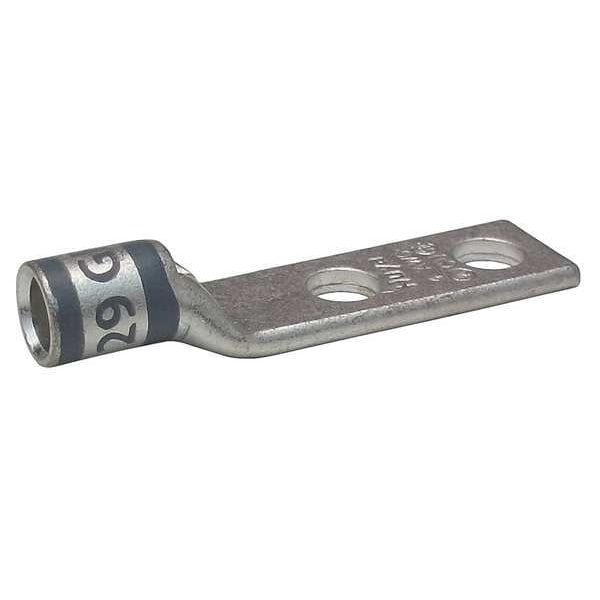

Two-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Short Barrel, Copper, Gray
Mfr # 24C434
Zoro # G4656626
product price:Â $2.15
/eaKey Features
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 24C434
- Zoro #
- G4656626
- UPC #
- 190735432792
- Country of Origin
- China
Dimensions
- For Wire Size
- 4 AWG
- For Stud Size
- 3/8 in
- Barrel Size
- Short
- Tongue Width
- 0.59 in
- Cable Size
- 4 AWG
- Width
- 0.59"
- Length
- 2.56"
- Barrel Length
- Short
- Length (Straight Wireway)
- 2.56 in
- Tongue Length
- 1.81 in
- Overall Length
- 2.56 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Hole Size
- 0.405 in
- Overall Width
- 0.59 in
- Barrel Outside Diameter
- 0.37 in
- Strip Length
- 9/16 in
- Barrel Inside Diameter
- 0.27 in
- Tongue Thickness
- 0.09 in
Description
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Gray, Die Code 29, Tongue Angle Straight, Tongue Width 0.59 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
