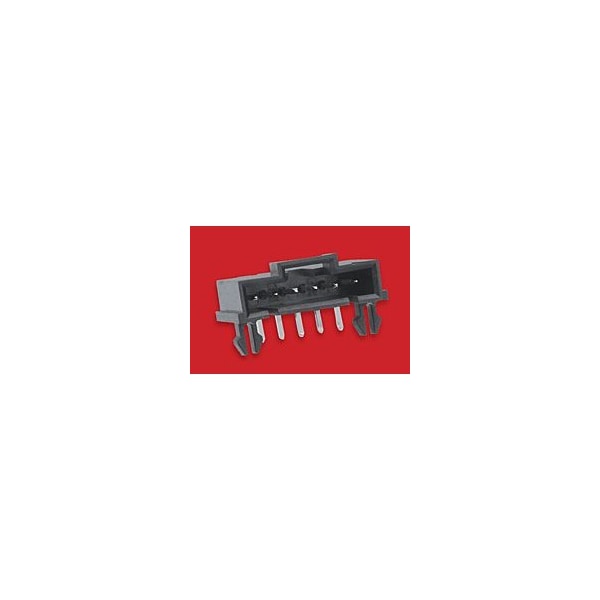

Molex SL R/A Latch Hdr /Split Pg 15 SAu 3Ckt 70551-0037 - main

SL R/A Latch Hdr /Split Pg 15 SAu 3Ckt

  • Mfr # 70551-0037

  • Zoro # G7767301

product price: $1.59
/ea
Sold in multiples of 92 for $146.28

Key Features

Orientation
Right Angle
Pitch - Mating Interface
2.54mm
Plating min - Mating
0.381µm
Current - Maximum per Contact
3.0A
Material - Plating Mating
Gold
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70551-0037
Zoro #
G7767301
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

Orientation
Right Angle
Pitch - Mating Interface
2.54mm
Plating min - Mating
0.381µm
Current - Maximum per Contact
3.0A
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Max. Cycles at Max. Process Temperature
1
Durability (mating cycles max)
50
PCB Retention
Yes
Shrouded
Fully
Material - Metal
Brass, Phosphor Bronze
Material - Resin
High Temperature Thermoplastic
Termination Interface: Style
Through Hole
Voltage - Maximum
250V
Polarized to Mating Part
Yes
Plating min - Termination
1.905µm
Circuits (Loaded)
3
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
UL
E29179
Lock to Mating Part
Yes
PCB Locator
Yes
CSA
LR19980
Color - Resin
Black
Process Temperature max. C
260
Number of Rows
1
Circuits (maximum)
3
Duration at Max. Process Temperature (seconds)
3
